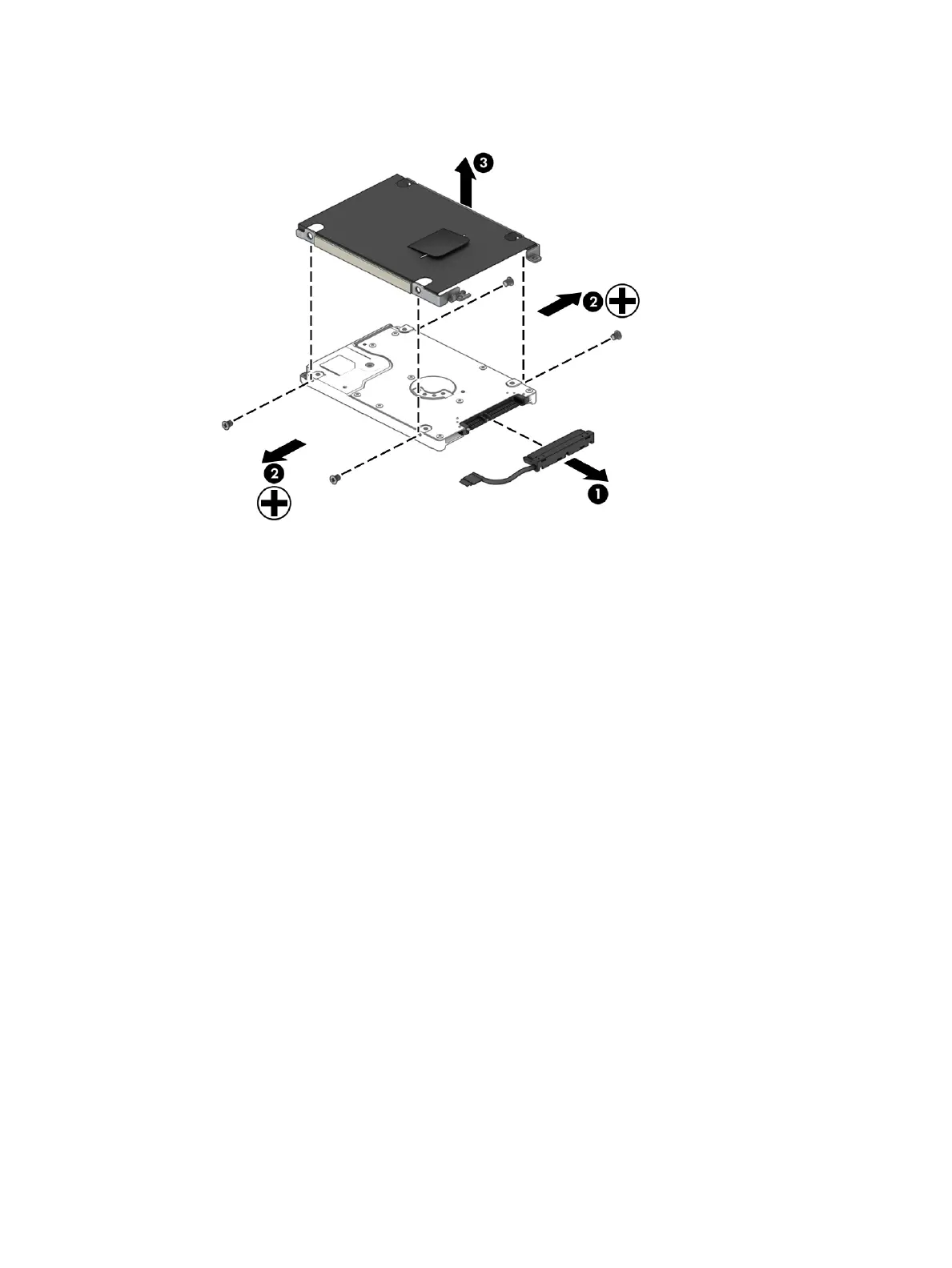

4. To disassemble the hard drive, disconnect the connector from the hard drive (1), remove the four Phillips
M3.0 × 3.0 screws (2) that secure the cover to the drive, and then lift the cover o the drive (3).
Reverse these procedures to install a hard drive.
38 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
