Removal and replacement procedures

Maintenance and Service Guide 4–13

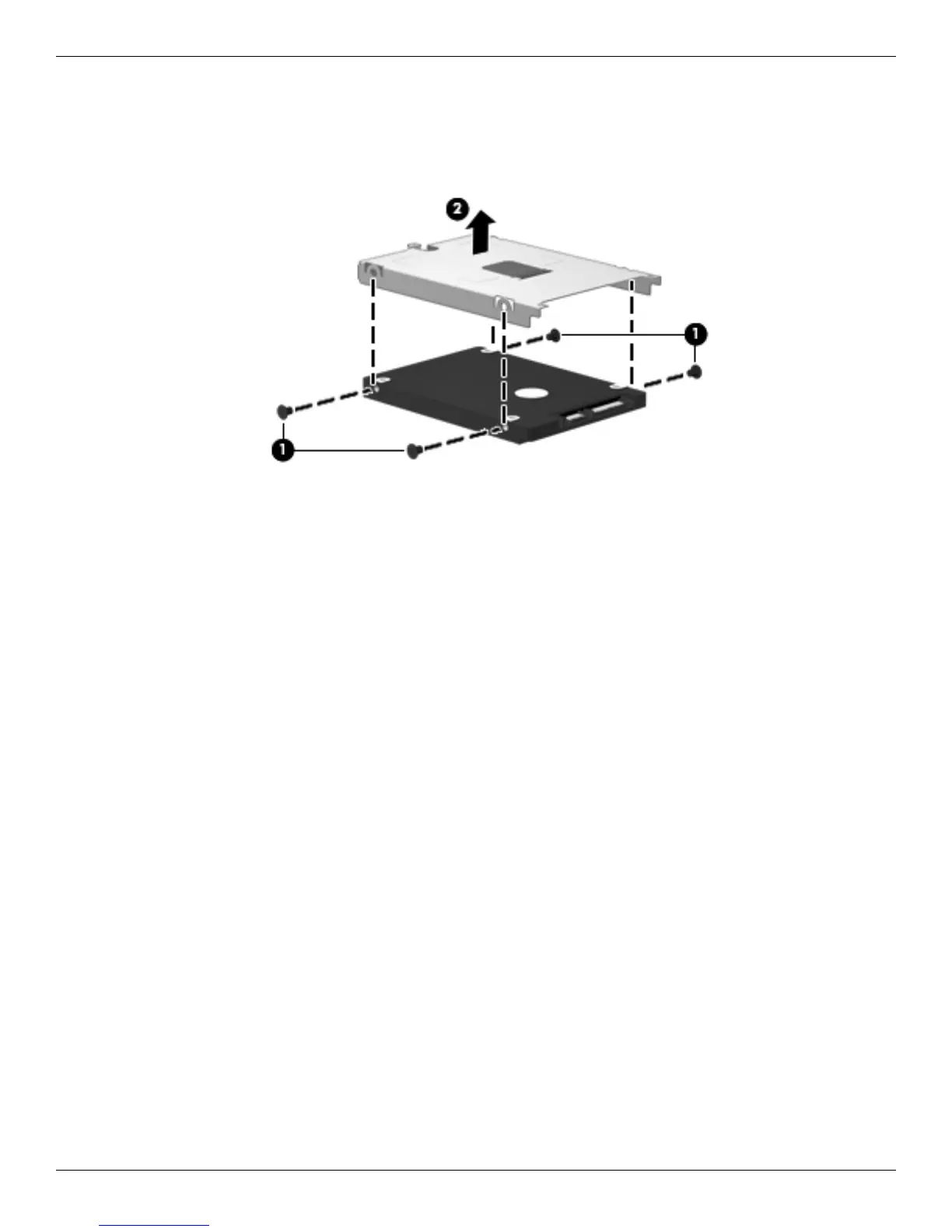

8. If it is necessary to replace the mass storage device bracket, follow these steps:

a. Remove the four Phillips PM3.0×3.0 screws 1 that secure the mass storage device bracket to the mass

storage device.

b. Lift the bracket 2 straight up to remove it from the mass storage device.

Reverse this procedure to reassemble and install the mass storage device.
