5.

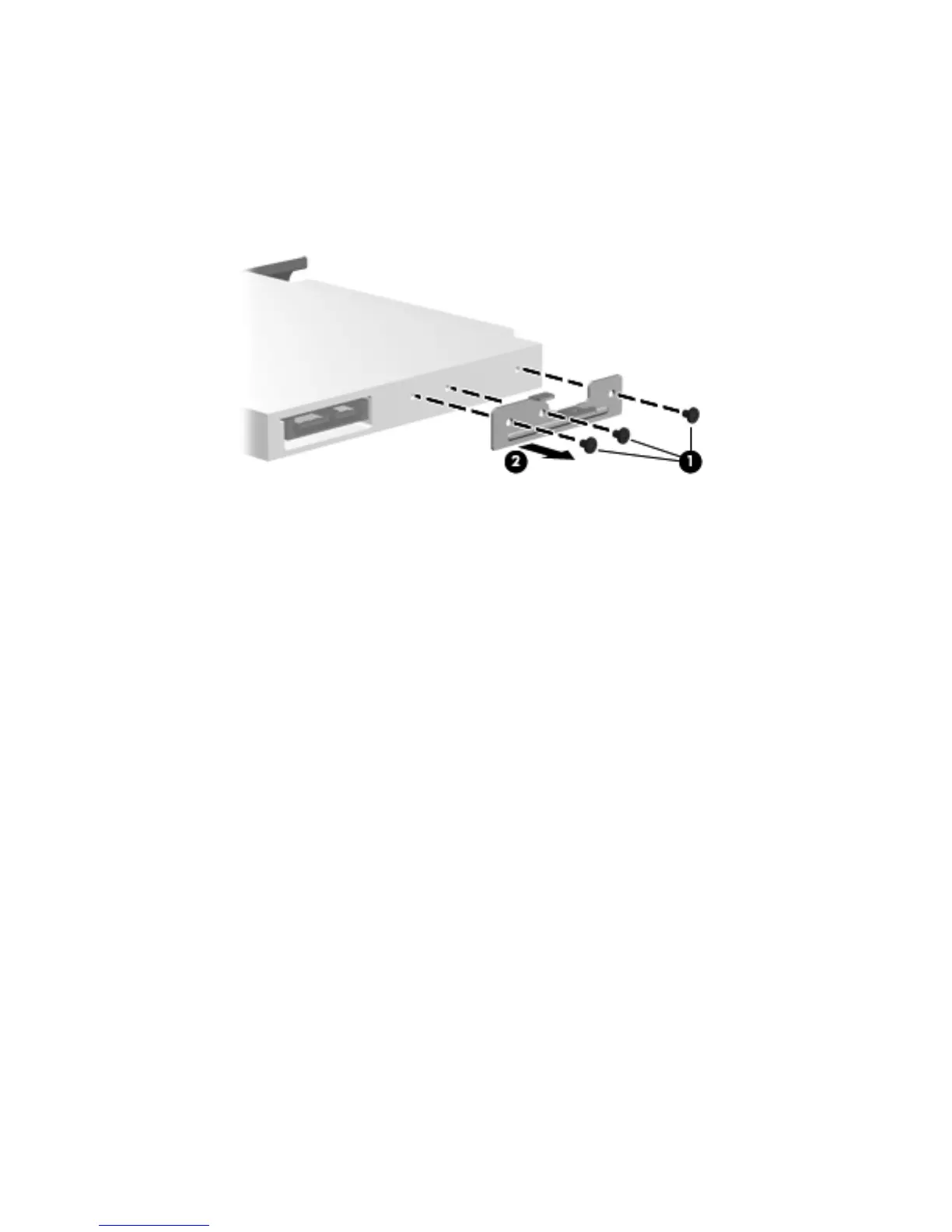

If it is necessary to replace the optical drive bracket, follow these steps:
a.
Position the optical drive with the rear toward you.
b. Remove the three Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the
optical drive.
c. Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install the optical drive.
Component replacement procedures
87
