2-14
Installing the Switch
Installation Procedures
Installing the Switch
Rack Mounting the Switch 2824

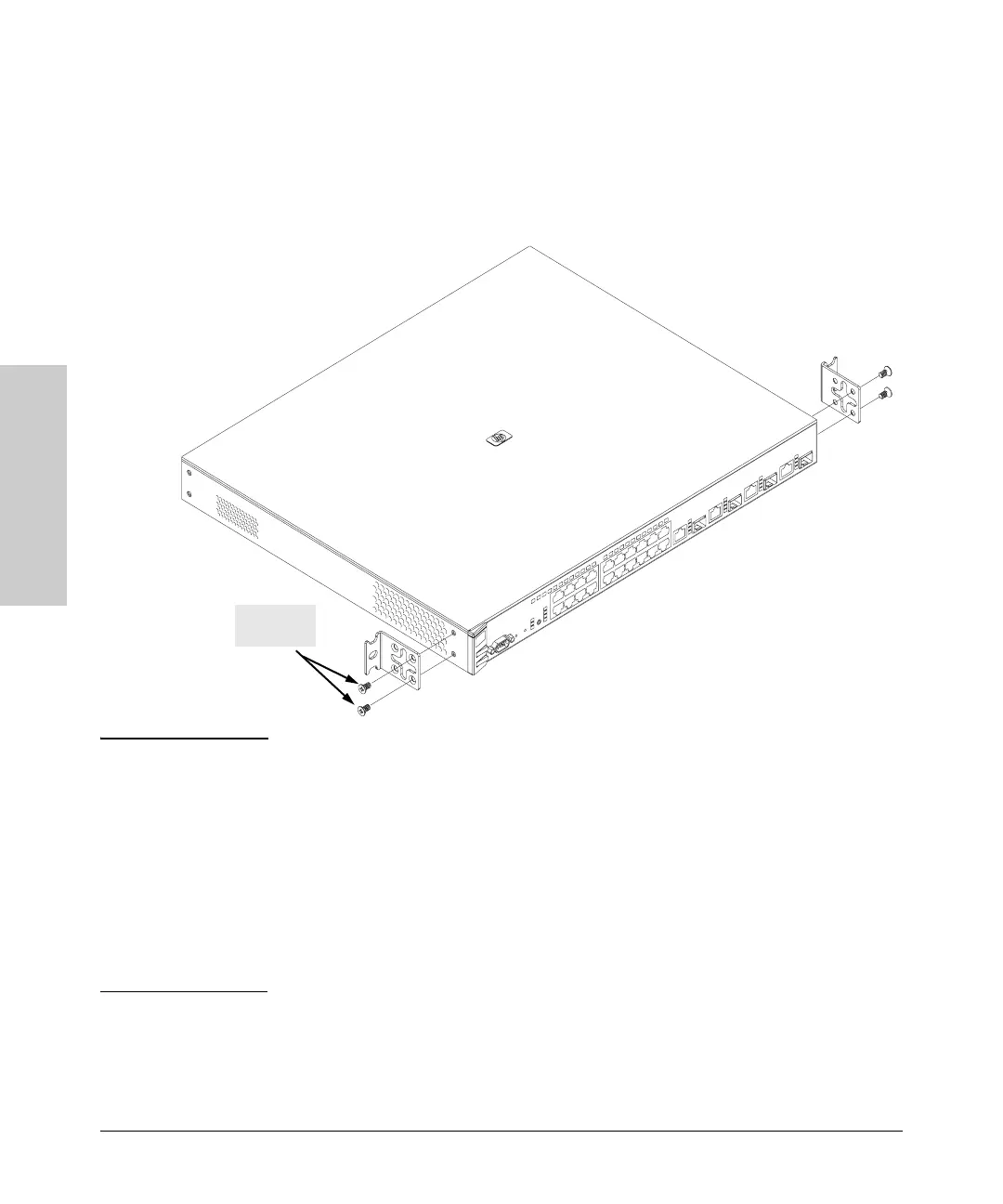

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
Note The mounting brackets have multiple mounting holes and can be rotated
allowing for a wide variety of mounting options. These include mounting the
switch so its front face is flush with the face of the rack, or mounting it in a
more balanced position as shown in the illustration.
Steps 2, 3, and 4 on the following pages describe a convenient method of
mounting the switch in a rack by placing it on two screws that you first install
in the rack. You may, instead, just hold the switch with attached brackets up
to the rack and move it vertically until rack holes line up with the bracket
holes and notches, then insert and tighten the four screws holding the brackets
to the rack.
8 mm
M4 screws
To Next Page
