2-24
Installing the Switch
Sample Network Topologies
Installing the Switch
Sample Network Topologies
This section shows a few sample network topologies in which the Switch is
implemented. For more topology information, see the HP network products
World Wide Web site,
http://www.hp.com/go/hpprocurve.

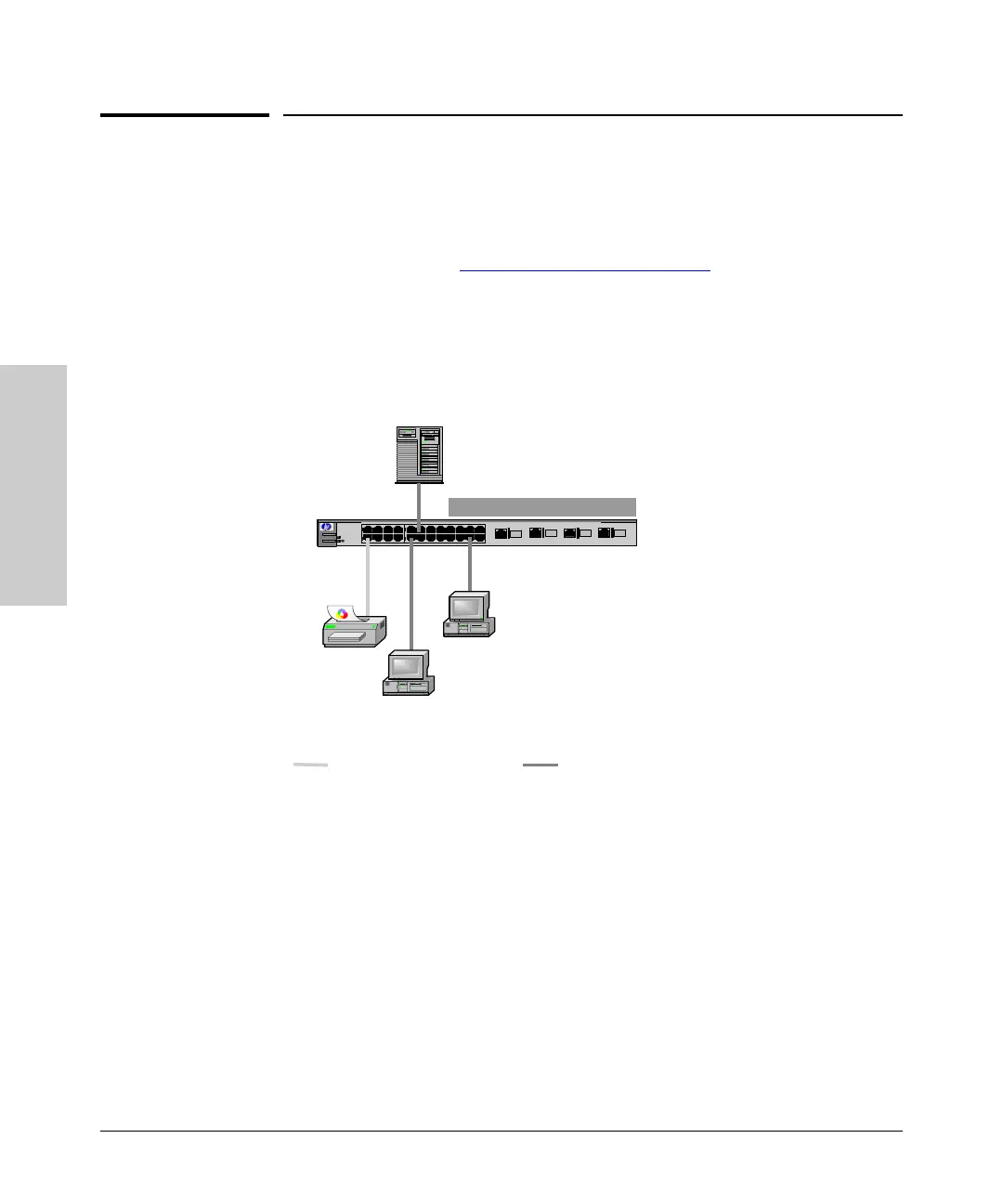

As a Desktop Switch
The Switch is designed to be used primarily as a desktop switch to which end
nodes, printers and other peripherals, and servers are directly connected, as
shown in the above illustration. Notice that the end node devices are
connected to the switch by “straight-through” or “crossover” twisted-pair
cables. Either cable type can be used because of the “IEEE Auto MDI/MDI-X”
features on the Switch.
HP ProCurve Switch 2824
Power
Fault
Server with Gigabit
Ethernet NIC
PCs, local servers,
and peripherals
LEGEND: Gigabit Ethernet cableFast Ethernet cable
