Installing the Switch
Installation Procedures
Installing the Switch
2. Installing or Removing mini-GBICs
You can install or remove a mini-GBIC from a mini-GBIC slot without having
to power off the switch. Use only HP ProCurve mini-GBICs.
Notes ■ The mini-GBIC slots are shared with the four 10/100/1000Base-T RJ-45
ports. If a mini-GBIC is installed in a slot, the associated RJ-45 port is
disabled and cannot be used.
■ The mini-GBIC ports operate only at full duplex. Half duplex operation is
not supported.
■ Ensure the network cable is NOT connected when you install or remove
a mini-GBIC.
When this manual was printed, the supported mini-GBICs include the
following:
■ HP ProCurve Gigabit-SX-LC mini-GBIC (J4858A)
■ HP ProCurve Gigabit-LX-LC mini-GBIC (J4859A)
■ HP ProCurve Gigabit-LH-LC mini-GBIC (J4860A)
Caution The HP ProCurve mini-GBICs are Class 1 laser devices. Avoid direct eye
exposure to the beam coming from the transmit port.
Installing the mini-GBICs:

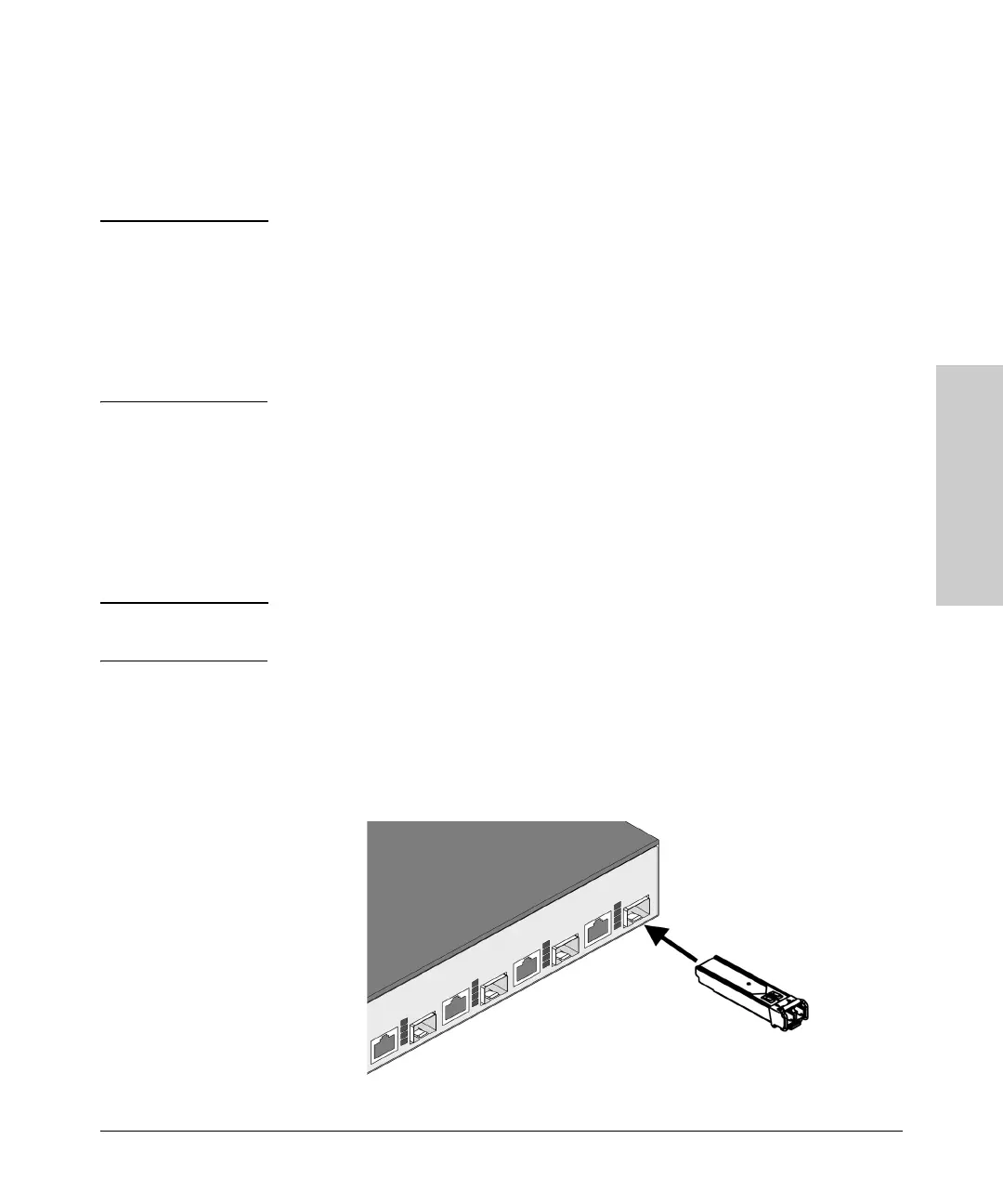

Hold the mini-GBIC by its sides and gently insert it into either of the slots on
the switch until the mini-GBIC clicks into place.
