Removing bezel blanks
On some models, there are bezel blanks covering one or more drive bays that need to be removed
before installing a drive. To remove a bezel blank:
1. Remove the access panel and front bezel.
2. Remove the bezel blank for the appropriate drive:
●

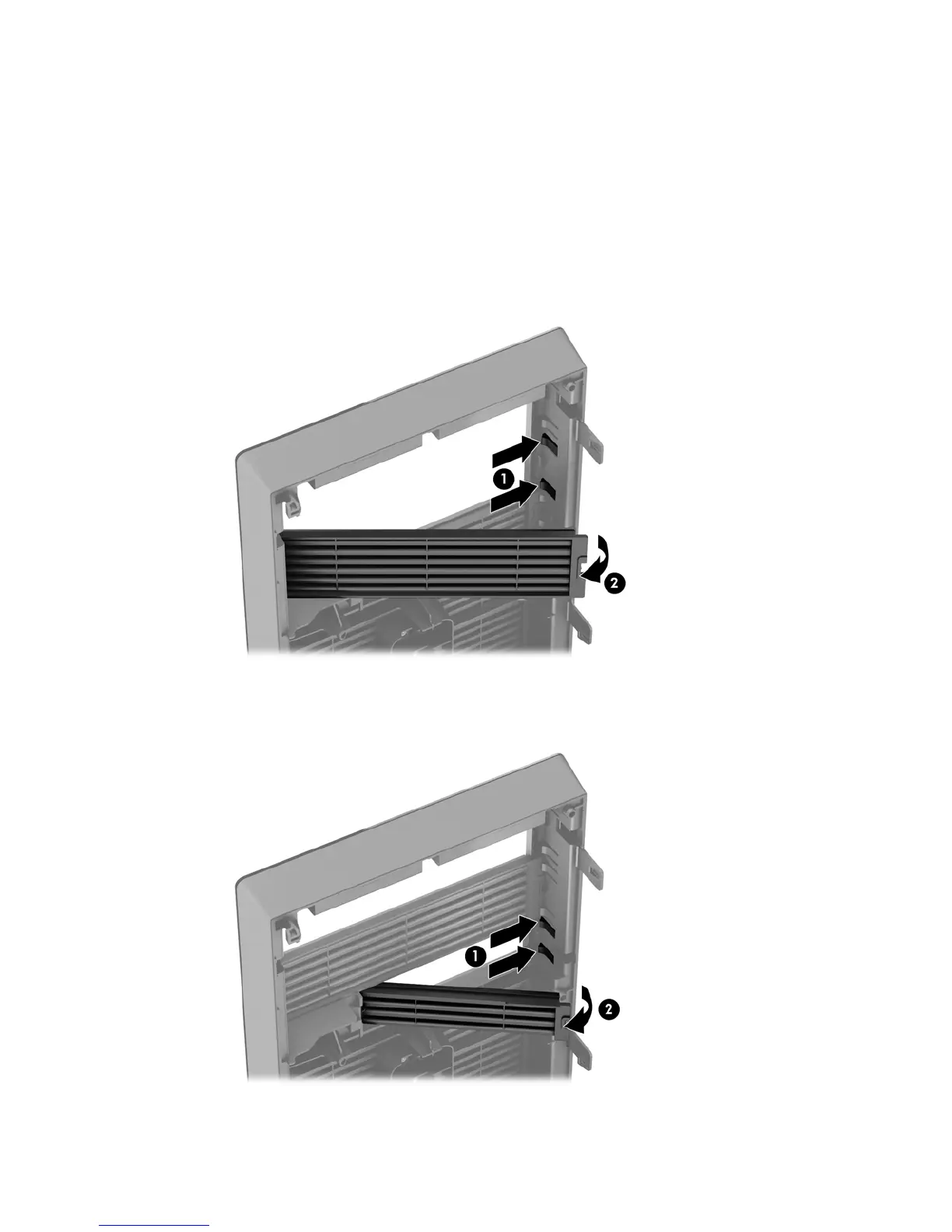

To remove a 5.25-inch bezel blank, press inward on the two retaining tabs on the side of
the bezel blank that hold the bezel blank in place (1) and rotate the bezel blank back to
remove it (2).
●
To remove a 3.5-inch bezel blank, press inward on the two retaining tabs on the side of the
bezel blank that hold the bezel blank in place (1) and rotate the bezel blank back to remove
it (2).
10 Chapter 2 Hardware upgrades
