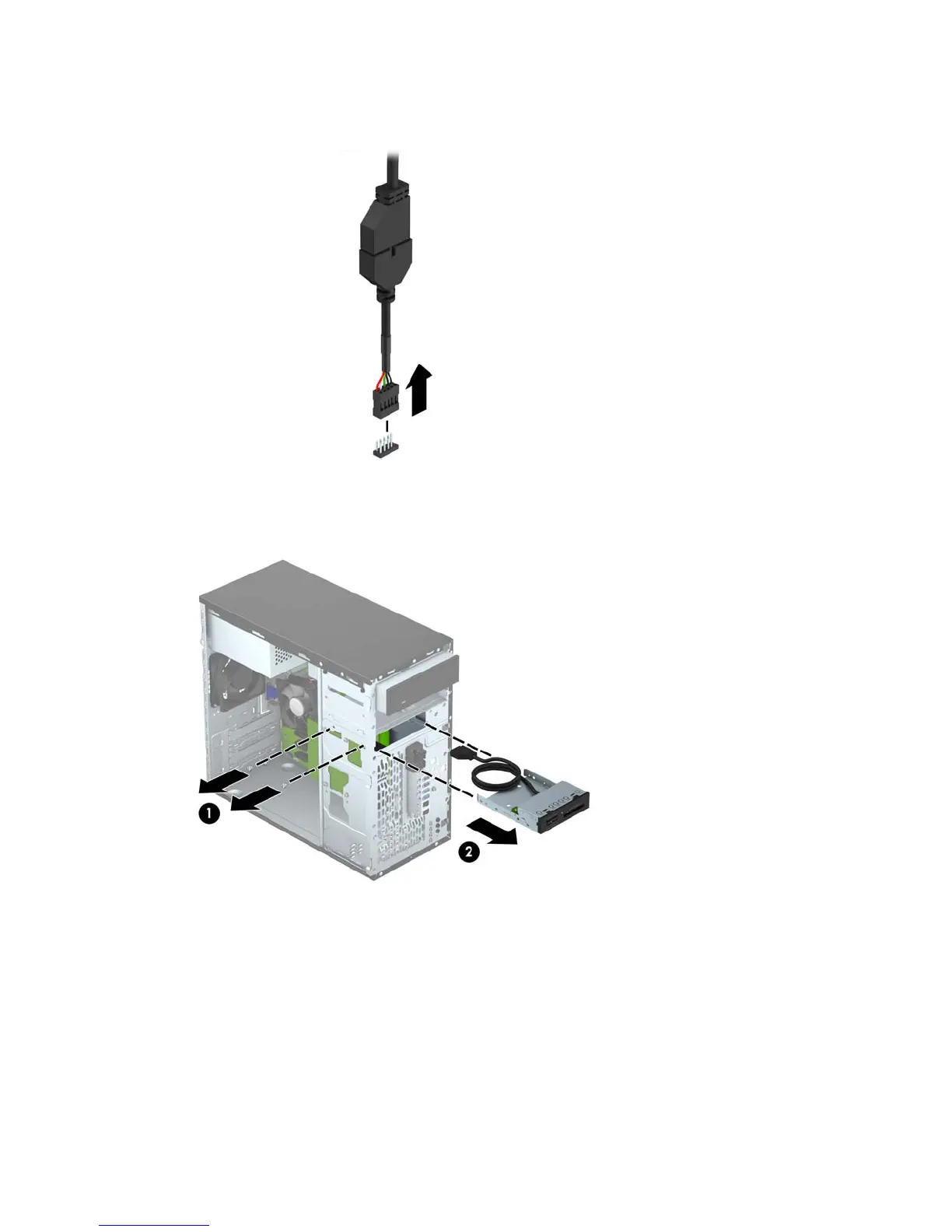

6. Disconnect the drive cables from the rear of the drive, or, if you are removing a media card
reader, disconnect the USB cable from the system board as indicated in the following illustration.
7. Remove the two silver 6-32 mounting screws from the side of the device (1) and slide the device
out of the front of the drive bay (2).
26 Chapter 2 Hardware upgrades
