HP ProDesk 400 G2 Small Form Factor User Manual

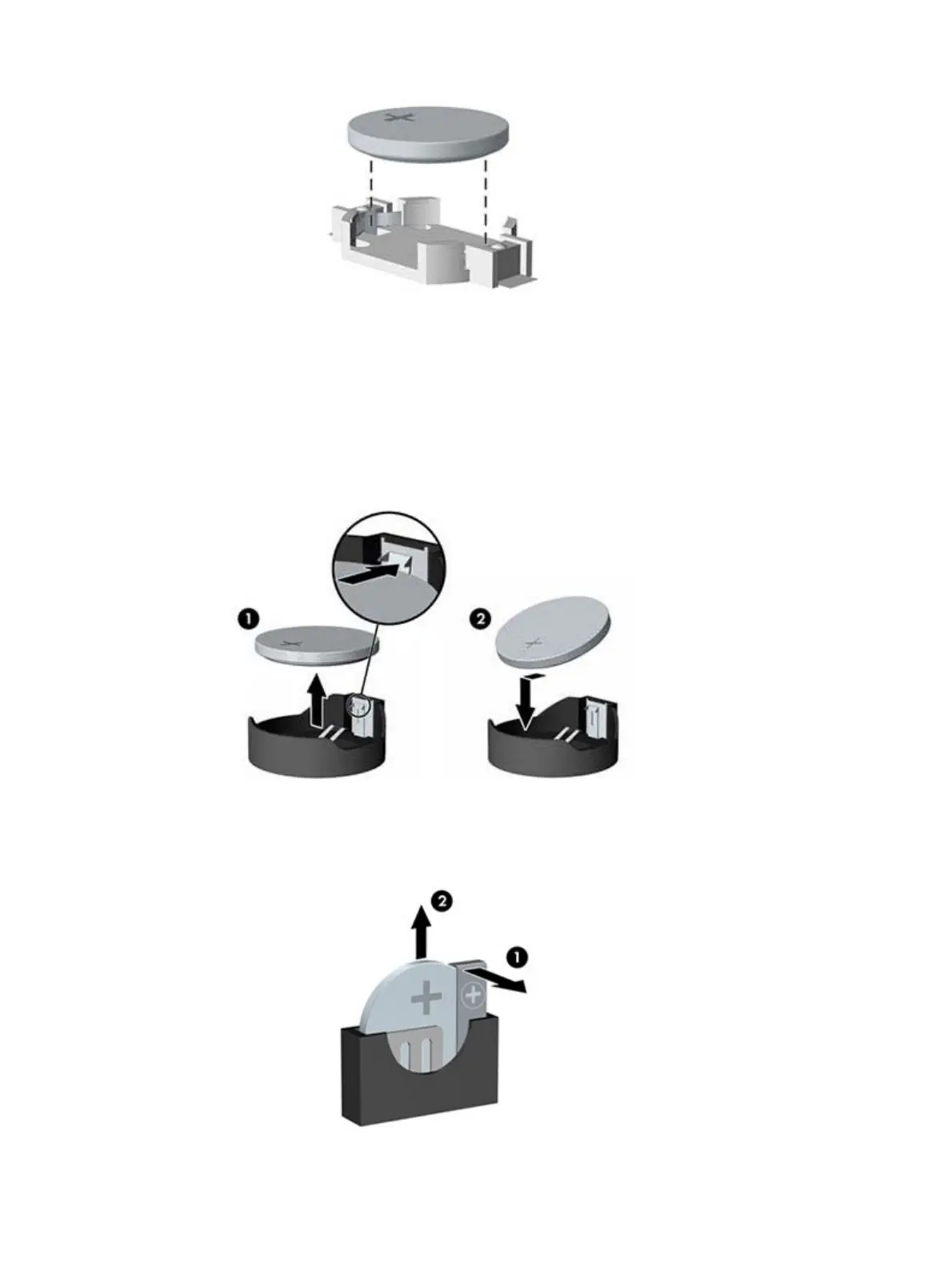

b. Slide the replacement battery into position, positive side up. The battery holder automatically
secures the battery in the proper position.
Type 2
a. To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of the
battery (2).
Type 3
a. Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
b. Insert the new battery and position the clip back into place.
131

HP ProDesk 400 G2 Small Form Factor Specifications

General

Brand	HP
Model	ProDesk 400 G2 Small Form Factor
Category	Desktop
Language	English
