HP ProDesk 400 G2 Small Form Factor User Manual

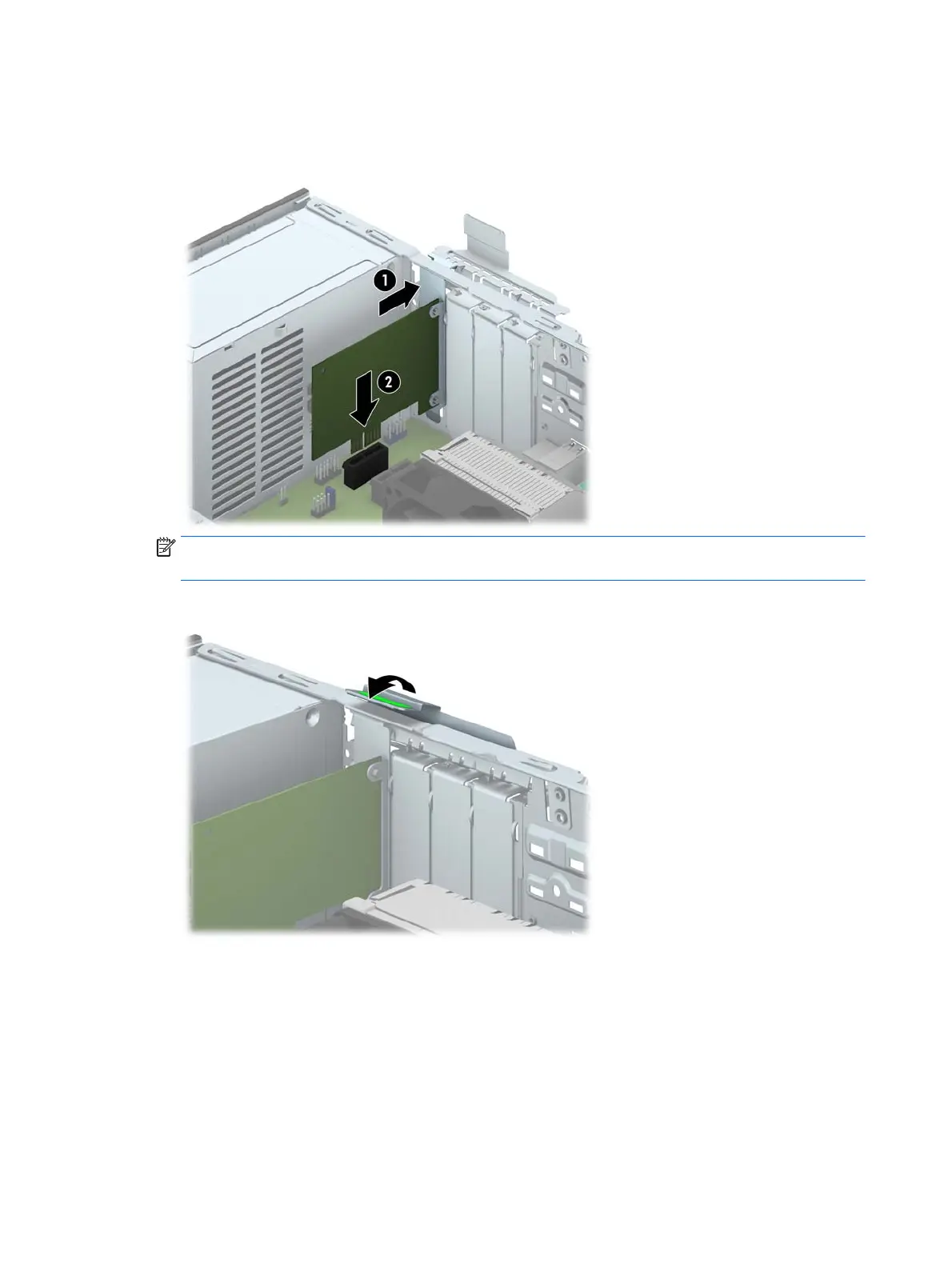

8. To install a new expansion card, hold the card just above the expansion socket on the system board
then move the card toward the rear of the chassis (1) so that the bracket on the card is aligned with the
open slot on the rear of the chassis. Press the card straight down into the expansion socket on the
system board (2).
NOTE: When installing an expansion card, press firmly on the card so that the whole connector seats
properly in the expansion card slot.
9. Rotate the slot cover retention latch back in place to secure the expansion card.
10. Connect external cables to the installed card, if needed. Connect internal cables to the system board, if
needed.
11. Reconfigure the computer, if necessary.
System board connections
Refer to the following illustration and table to identify the system board connectors for your model.
30 Chapter 4 Removal and replacement procedures: Small Form Factor
