Power switch assembly
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (
Access panel on page 20).
3. Remove the front bezel (
Front bezel on page 21).
4. Rotate the drive cage to its upright position.

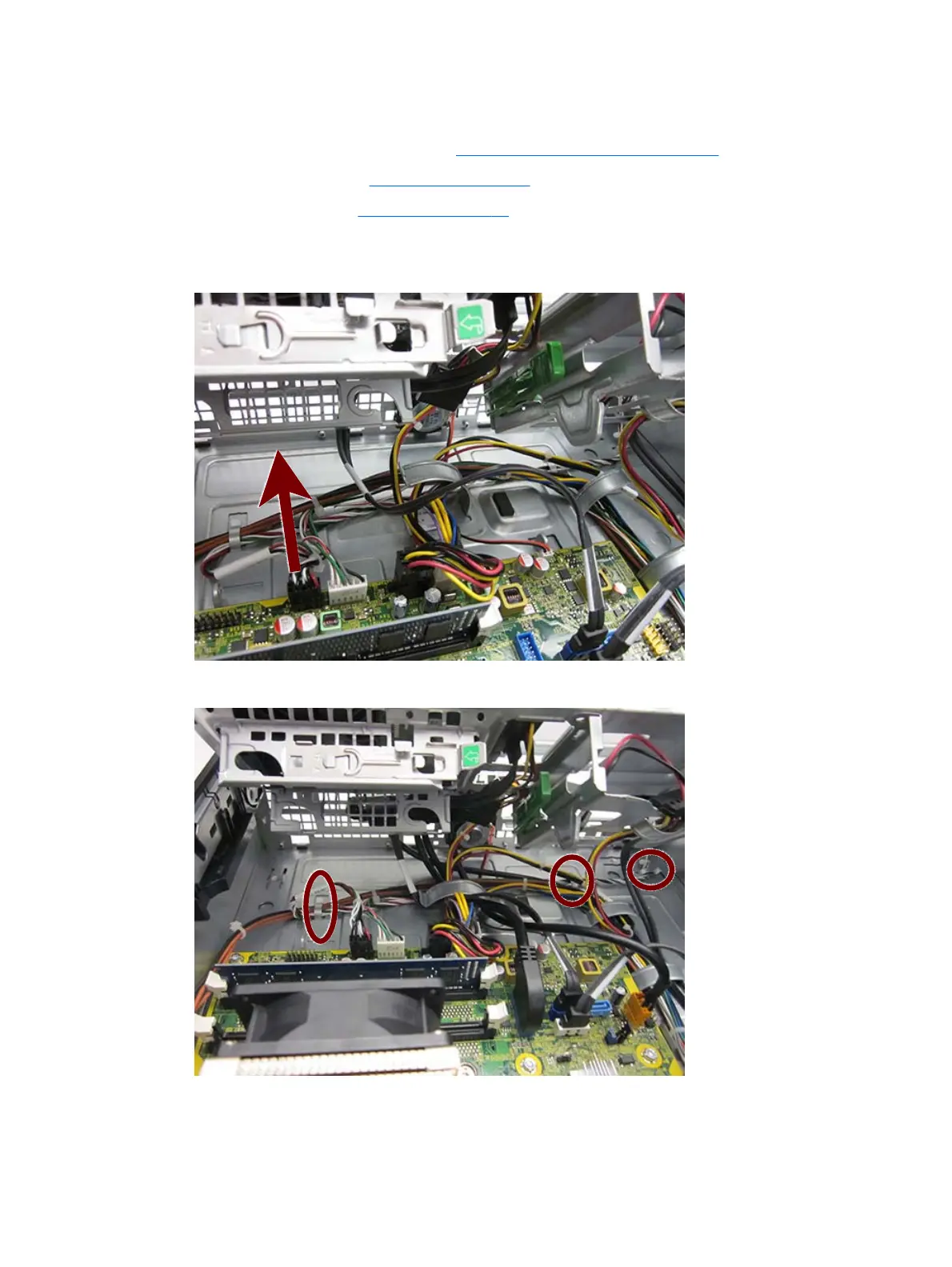

5. Disconnect the cable from the system board connector labeled PB/LED.
6. Remove the cable from the cable clips under the drive cage.
Power switch assembly 51
