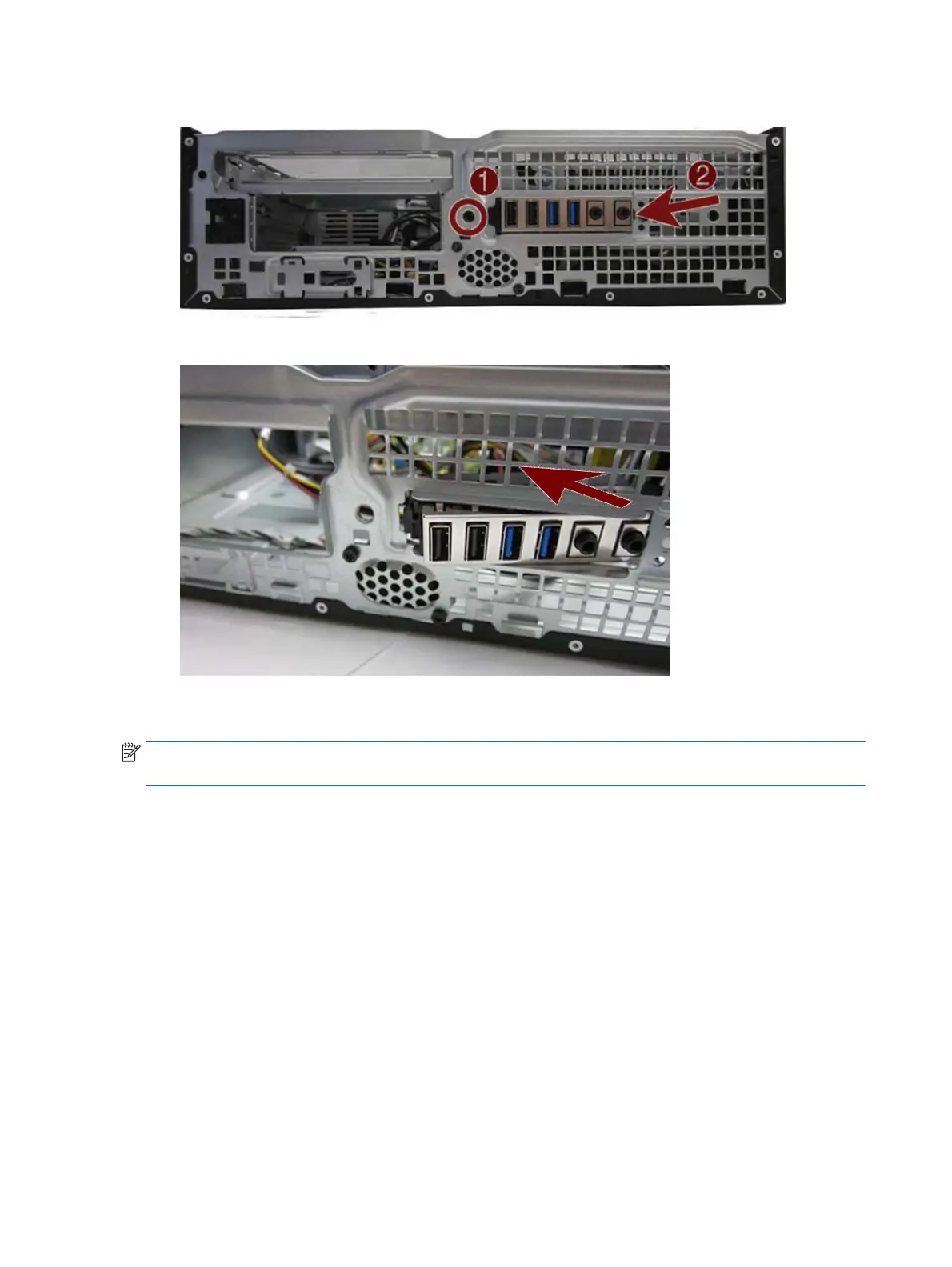

9. Press the tab on the right side of the assembly (2) to disengage it from the chassis.
10. Push the assembly into the chassis, and then remove it from the chassis.
To install the assembly, insert the assembly from the inside of the chassis, and then pull the tab on the left
side of the assembly out the front of the chassis. Push the right side until it clicks into place.
NOTE: Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly. Proper
cable routing prevents damage to the cables and allows the drive cage to close properly.
50 Chapter 4 Removal and replacement procedures: Small Form Factor
