Removal and Replacement Procedures
DIMMs
To remove a DIMM:
1. Power down the server blade and remove it from the server blade enclosure. Refer to the
“Server Blad e Preparation” section in this chapter.
NOTE: The server blade ships with one 1-GB DIMM installed in slot 1.
2. Open the DIMM slot latches (1).
3. Remove the DIMM from the slot (2).

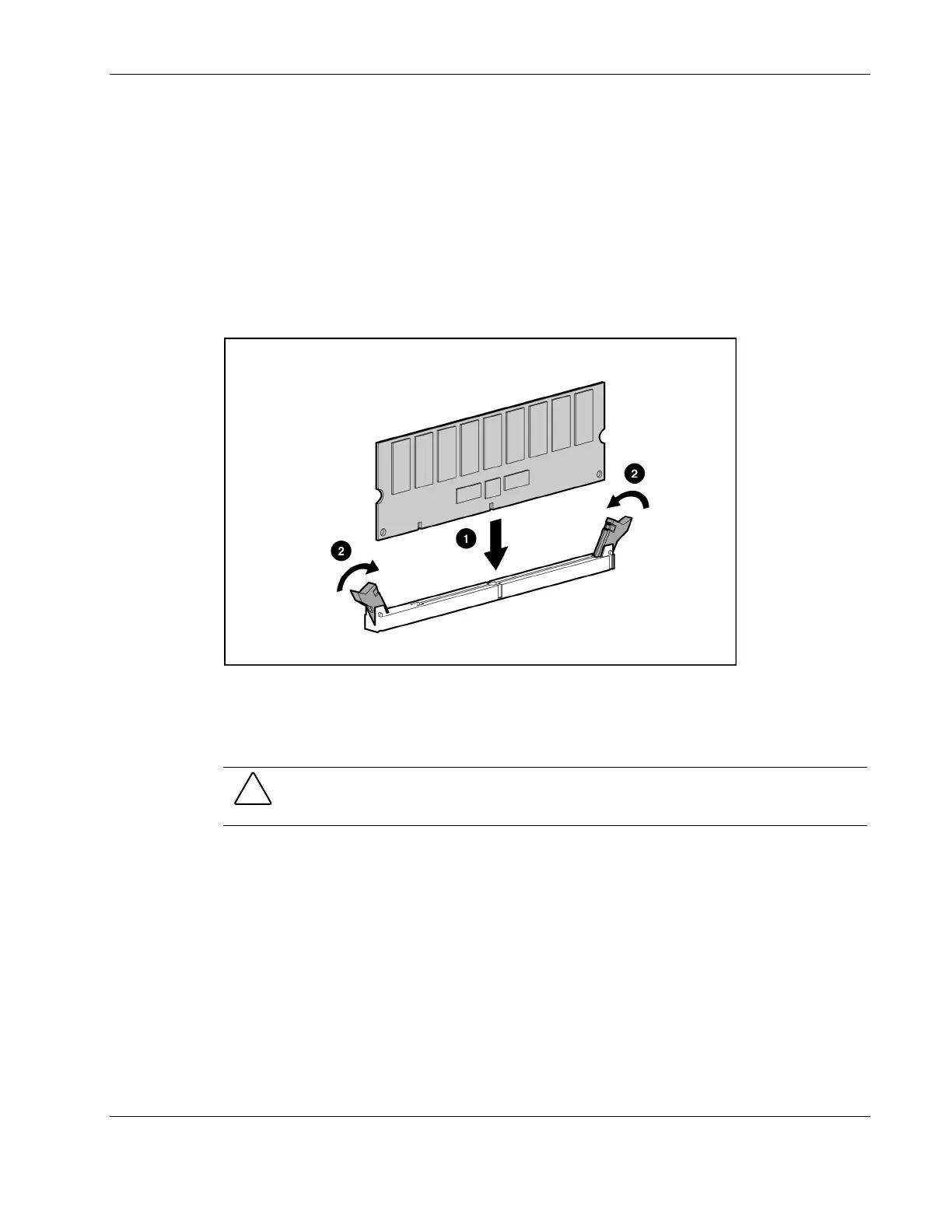

Figure 2-11: Removing a DIMM
IMPORTANT: For proper DIMM configuration, refer to the HP ProLiant BL30p Server Blade Setup and
Installation Guide.
CAUTION: Use only HP DIMMs. DIMMs from other sources may adversely affect data
integrity.
IMPORTANT: DIMMs do not seat fully if turned the wrong way.
Reverse steps 1 through 3 to replace a DIMM.
NOTE: Installing DIMMs in pairs allows interleaving functionality.
HP ProLiant BL30p Server Blade Maintenance and Service Guide 2-11
