HP ProLiant BL30p

Connectors, LEDs, and Switches

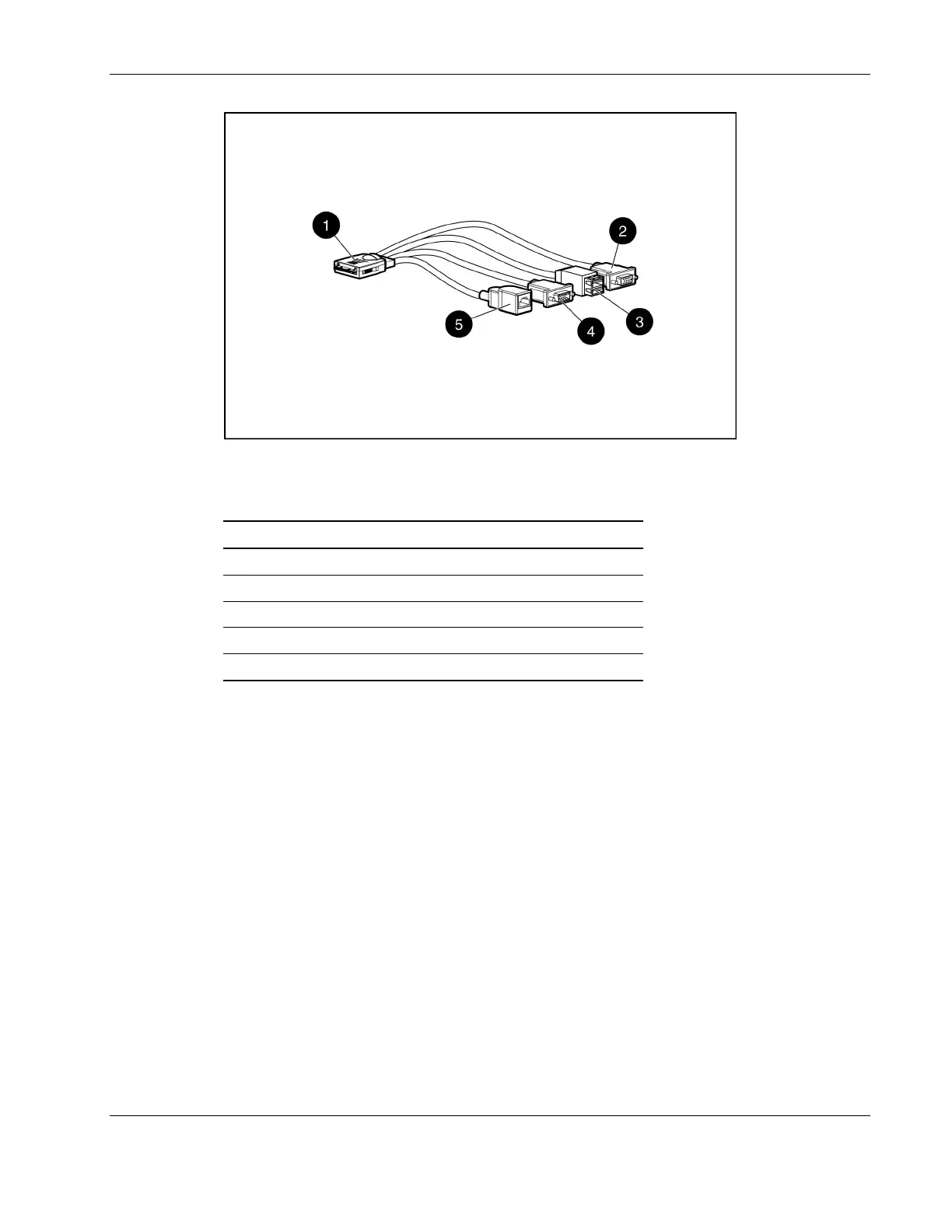

Figure 4-5: Local I/O cable connectors
Table 4-3: Local I/O Cable Connectors
Item Description
1 Server blade connector
2 Video connector
3 USB connector (2)
4 Serial connector
5 iLO RJ-45 (10/100 Ethernet) connector
IMPORTANT: Completely log out of the current iLO session before removing the local I/O cable.
Removing the cable before logging out of the current iLO session or while the UID LED is blinking will
result in a 5- to 7-minute delay while the iLO NIC re-establishes a connection.
