Cabling 105

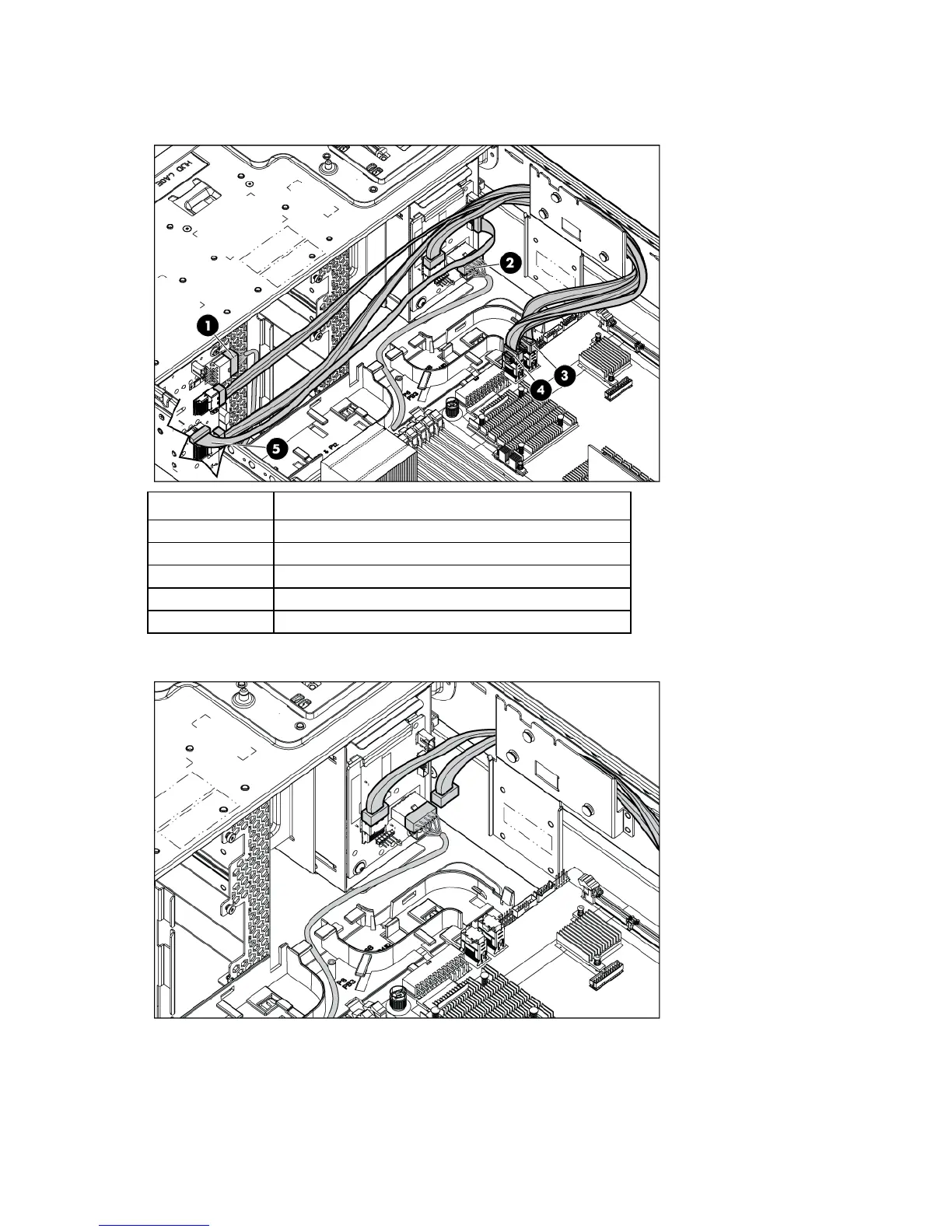

Two-bay LFF drive cage cabling
• Two-bay LFF drive cage cabling to an optional six-bay LFF backplane
Item Description
1
Drive cage bay 1 power cable
2
Drive cage bay 3 power cable
3
SAS cable (connector A)
4
SAS cable (connector B)
5
LED cable
• Two-bay LFF drive cage cabling to an optional SAS controller
