HP ProLiant DL G6 - Media Device Data Cabling

Cabling 109
Item Description
2
SAS expander card, connectors E and F
3
SAS expander card, connectors G and H
4
SAS expander card, connectors A and B
5
System board SAS connectors A and B
6
Hard drive cage 3
7
Hard drive cage 2
8
Hard drive cage 1

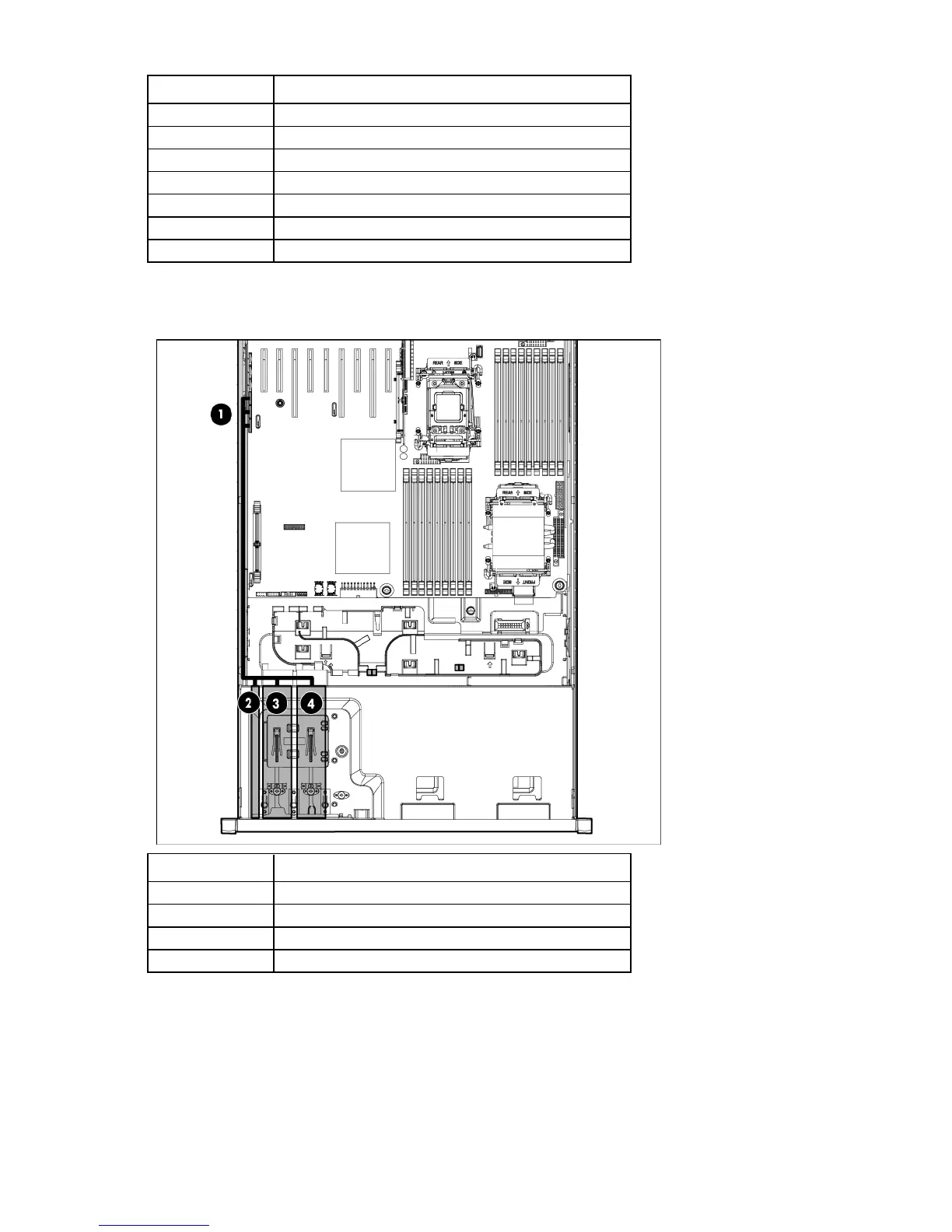

Media device data cabling
Item Description
1
SATA connectors
2
Slimline optical drive
3
DVD-ROM drive
4
Half-height media device
