Cabling 113

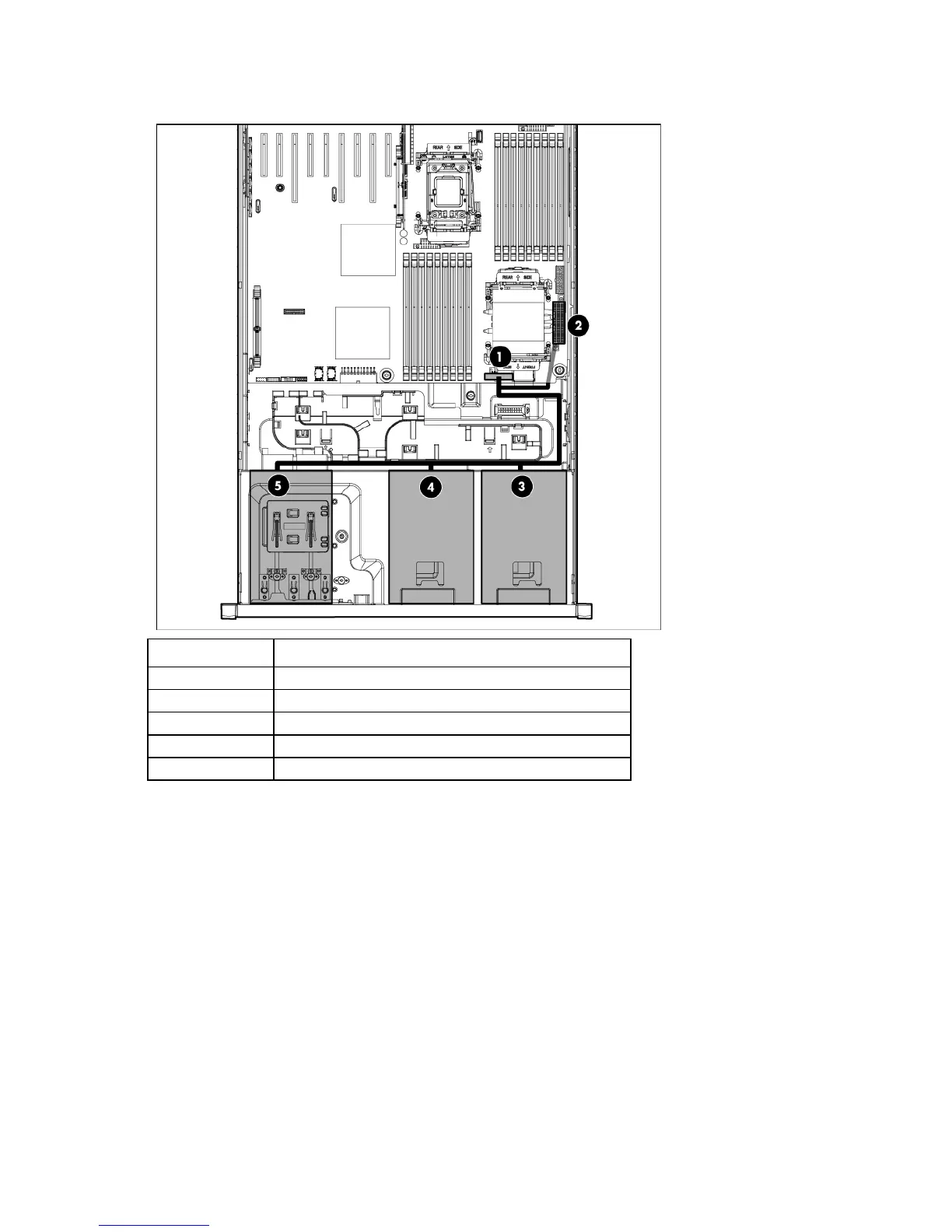

Hard drive cage power cabling
Item Description
1
24-pin power connector
2
Power supply backplane connector
3
Hard drive bay 1 (must use BP1 power cable)
4
Hard drive bay 2 (must use BP2 power cable)
5
Hard drive bay 3 (must use BP3 power cable)
