Hardware options installation 72
d.

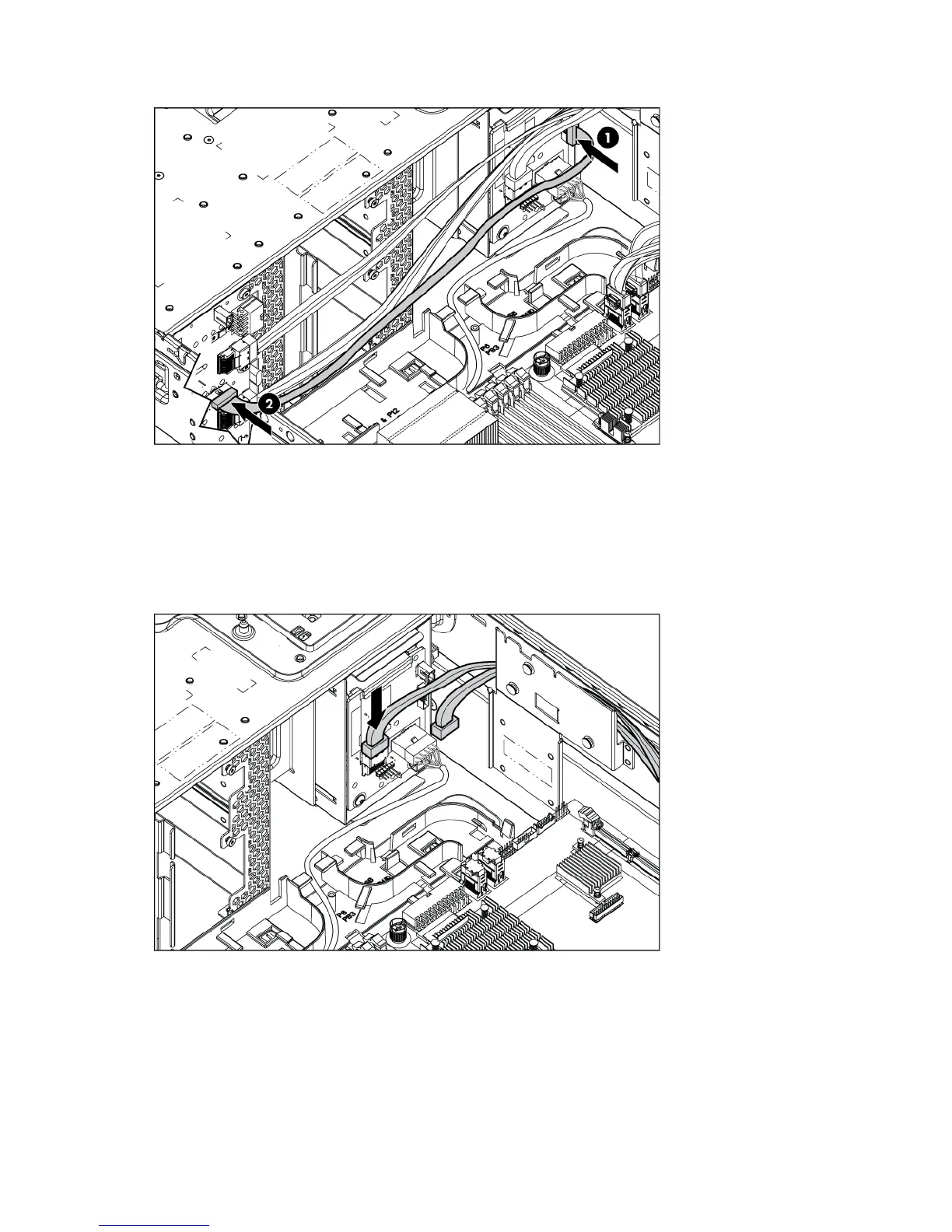

Connect the LED cable to the two-bay LFF drive cage backplane and to the six-bay LFF backplane.
e. Proceed to step 17.
16. Connect the SAS/SATA controller cable:
a. Connect the main branch of the SAS/SATA controller cable to an optional SAS controller ("Storage
controller option" on page 84).
b. Connect the "6LFF" labeled connector to the two-bay LFF drive cage backplane.
For this cabling scenario, the "2LFF" labeled connector is not used.
c. Coil the excess cable to minimize the impact to airflow.
17. Install the fan cage.
18. Install the air baffle.
19. If removed, install the BBWC battery pack or the FBWC capacitor pack ("Installing the BBWC battery
pack or the FBWC capacitor pack" on page 86).
20. Install fan 5.
