Hardware options installation 83
15.

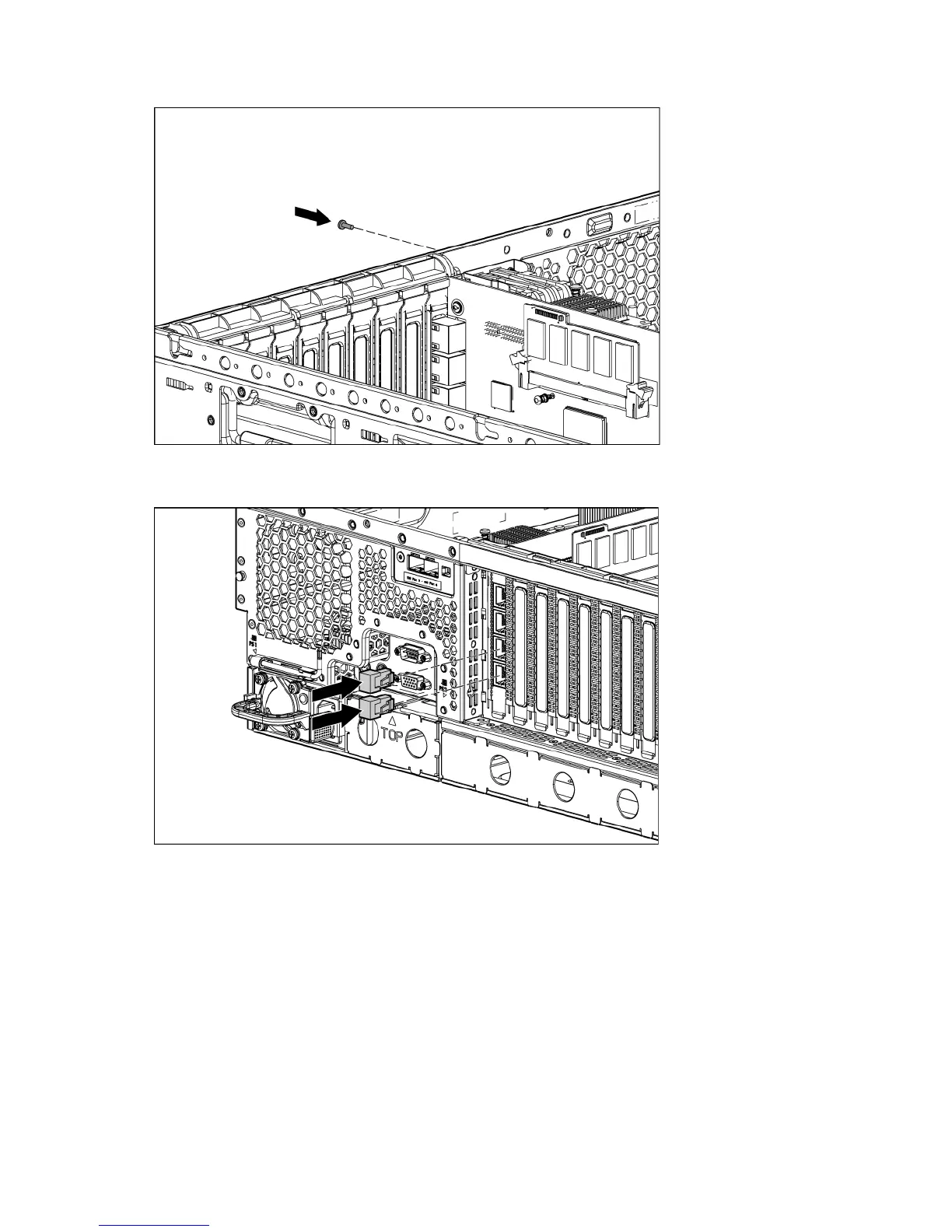

Secure the 10G NIC connectors to the chassis with the retaining screw.
16. Install the RJ-45 plugs on the bottom (rack model) or right (tower model) two RJ-45 connectors on the HP
NC375i adapter.
17. Install the air baffle.
18. If removed, install the BBWC battery pack or the FBWC capacitor pack ("Installing the BBWC battery
pack or the FBWC capacitor pack" on page 86).
19. Install fan 5.
20. Install the access panel.
21. Do one of the following:
o Close or install the tower bezel, as needed.
o Slide the server back into the rack.
22. Connect the network cables.
23. Power up the server (on page 22, "Powering up and configuring the server" on page 40).
