Hardware options installation 90
3.

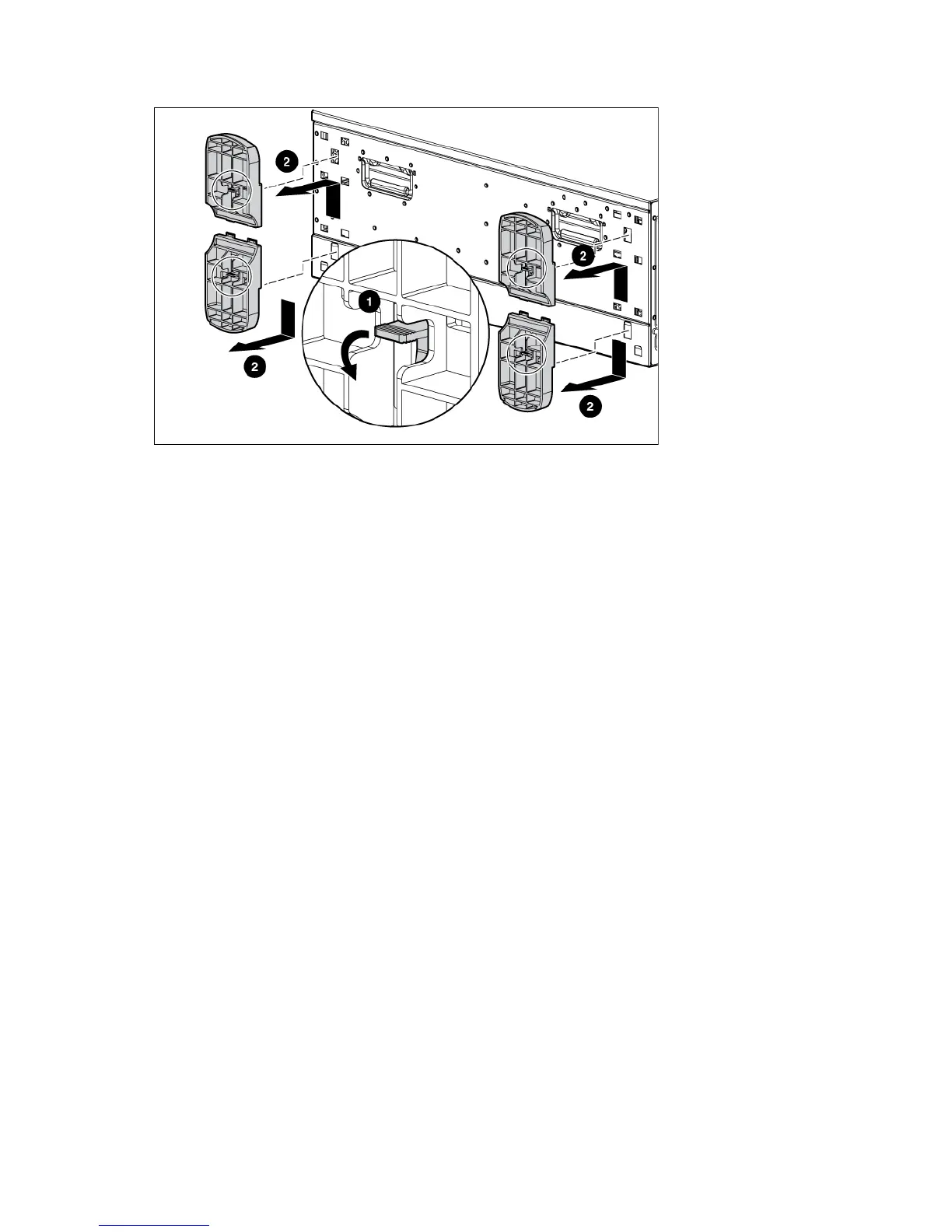

Remove the feet.
4. Remove the tower bezel ("Open or remove the tower bezel" on page 22).
5. Remove the access panel (on page 25).
6. If installed, remove the BBWC battery pack or the FBWC capacitor pack (on page 27).
7. Remove fan 5 (on page 26).
8. Remove the air baffle (on page 28).
9. Remove the fan cage (on page 29).
10. Remove all SFF hard drives ("Removing a hot-plug SAS hard drive" on page 58).
11. Disconnect all cables from the drive cages.
12. Remove the SFF drive cages.
For more information, see the server maintenance and service guide.
13. Remove the hard drive cage blank (on page 31).
14. Remove the DVD-ROM drive (on page 31), if installed.
15. Remove the two-bay LFF drive cage, if installed.
For more information, see the server maintenance and service guide.
16. (Optional) Reduce the weight of the server:
o Remove the power supplies.
o Remove all LFF hard drives and blanks.
o Disconnect cabling and remove all devices from the removable media bays.
