Hardware options installation 98
29.

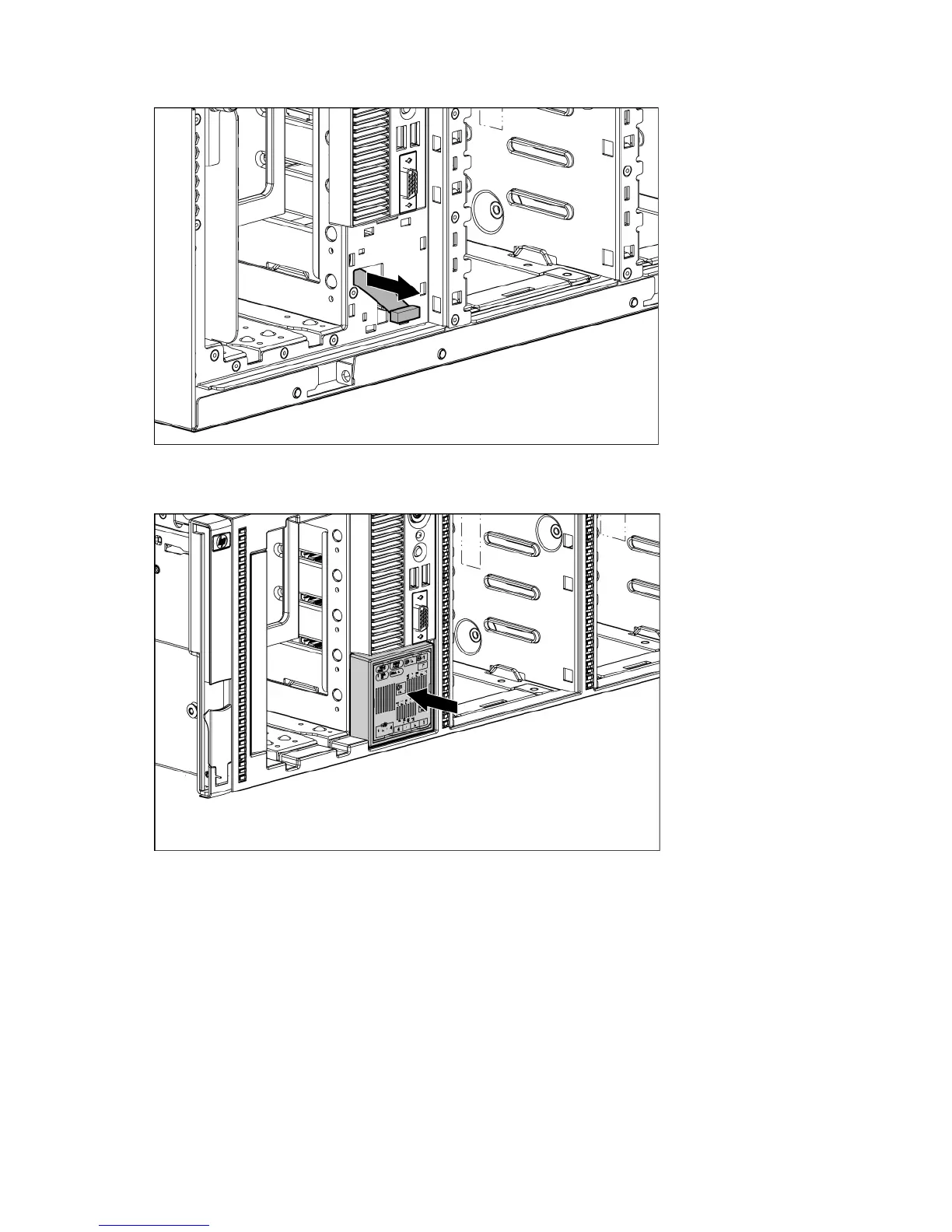

Route the Systems Insight Display cable into the rack slot.
30. Connect the Systems Insight Display cable to the Systems Insight Display.
31. Install the Systems Insight Display.
32. Install the SFF drive cages.
33. Install the two-bay LFF drive cage, if removed.
34. Install the DVD-ROM drive, if removed.
35. Connect the drive cables.
36. Install the fan cage.
37. Install the air baffle.
38. If removed, install the BBWC battery pack or the FBWC capacitor pack ("Installing the BBWC battery
pack or the FBWC capacitor pack" on page 86).
39. Install fan 5.
