Hardware options installation 73

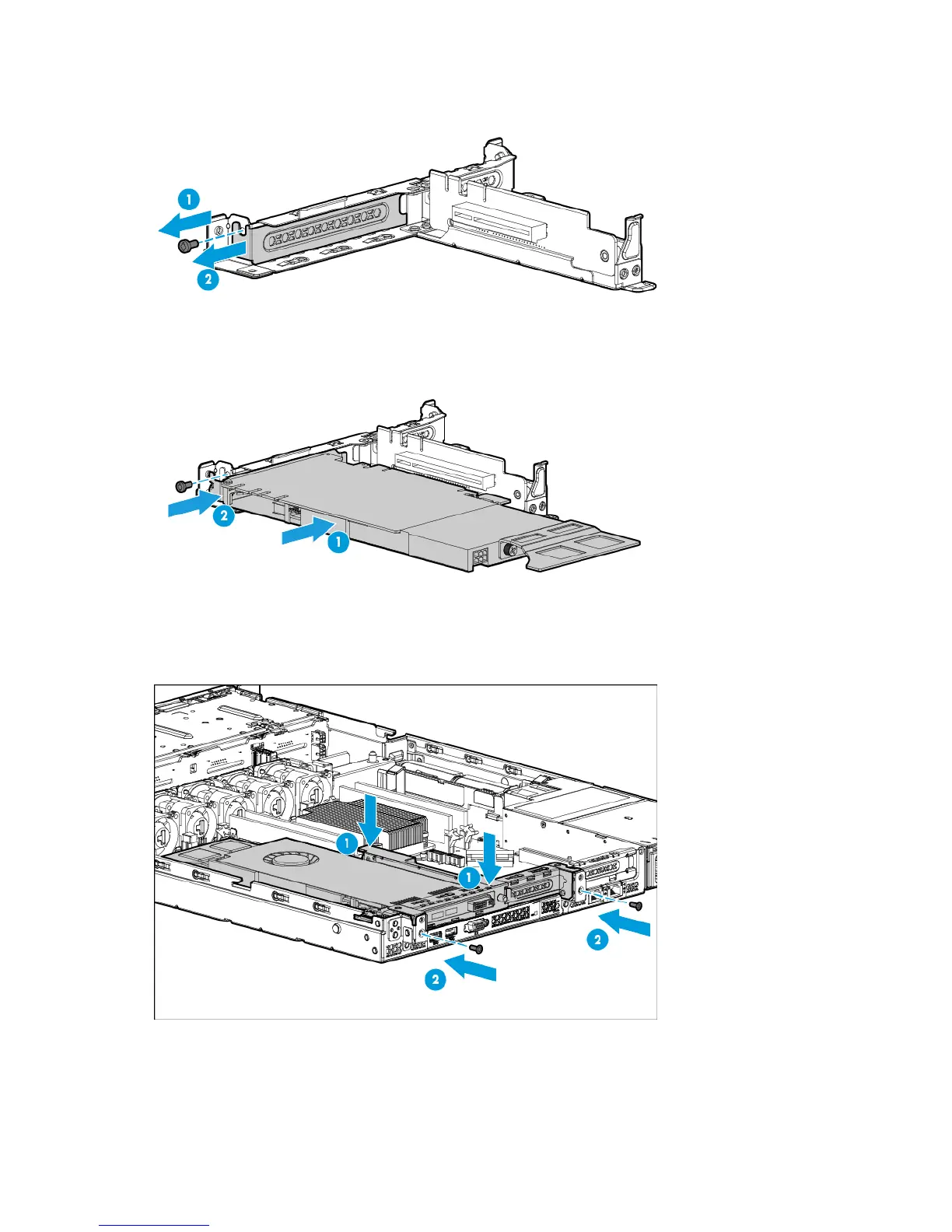

7. Remove the slot cover from the riser cage.
8. Install the GPU into the GPU riser slot.
9. Align the PCI riser board with the corresponding connector on the system board, and then press down
the riser cage.
10. Tighten the two screws to secure the cage.
11. Route the power cable through the cable clips, and then connect the power cable to the GPU. For GPU
cabling information, see "GPU cabling (on page 90)".
The GPU can only be supported by the 900 W power supply.
