HP ProLiant DL380 Generation 4 User Manual

Component identification 10

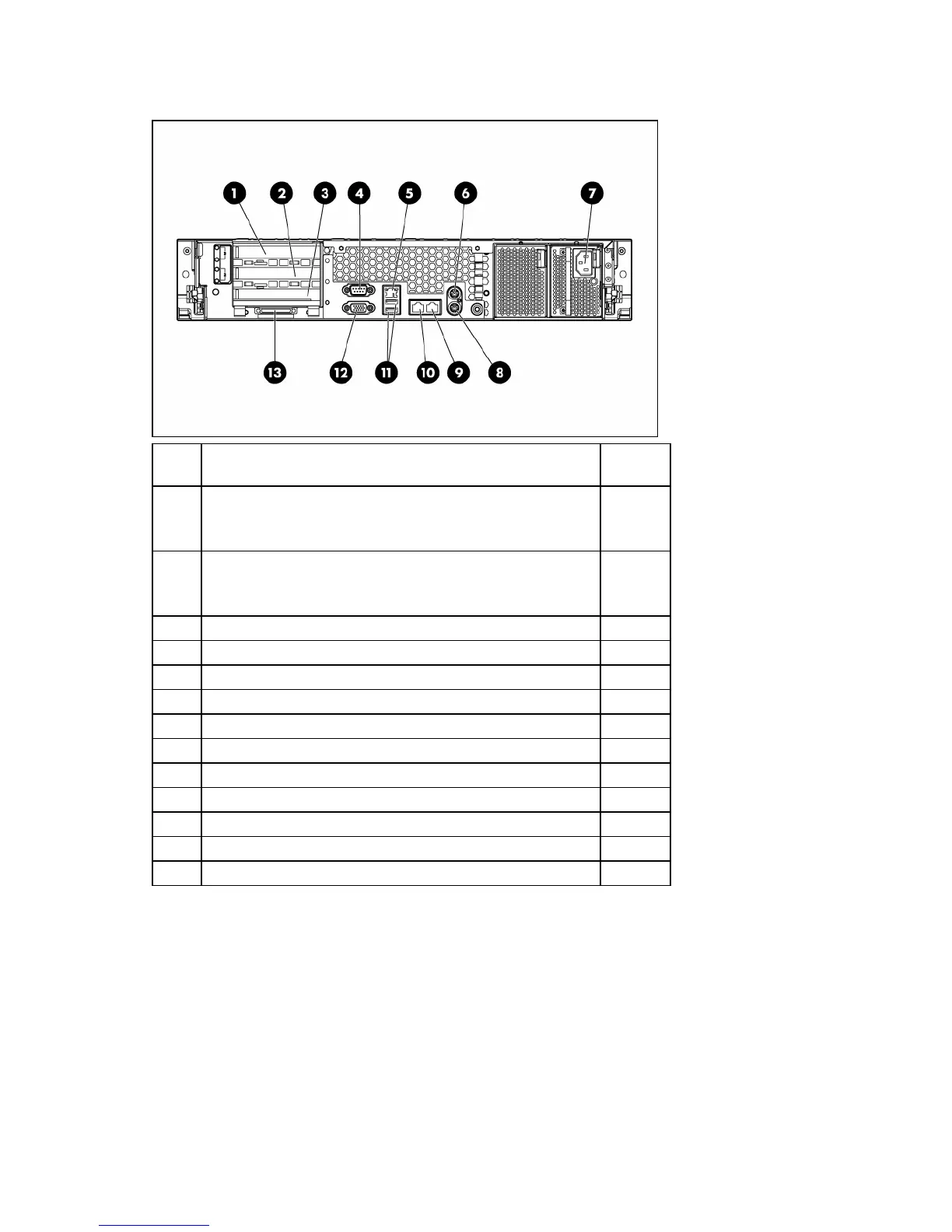

Rear panel components
Item Description Color
1
• Hot-plug or non-hot-plug PCI-X expansion slot 3, 64
bit/100 MHz, bus B
• PCI Express x4 slot 2, bus B*
N/A
2
• Hot-plug or non-hot-plug PCI-X expansion slot 2, 64
bit/100 MHz, bus B
• PCI Express x4 slot 1, bus A*
N/A
3 Non-hot-plug PCI-X expansion slot 1, 64 bit/133 MHz, bus A N/A
4 Serial connector Teal
5 iLO connector N/A
6 Mouse connector Green
7 Power cord connector N/A
8 Keyboard connector Purple
9 NIC 1 connector N/A
10 NIC 2 connector N/A
11 USB connectors Black
12 Video connector Blue
13 VHDCI SCSI connector (port 1)** N/A
* x8 PCI Express cards are supported on the SCSI models and will run at x4 speeds. SAS models do not support PCI
Express cards.
**This feature applies only to SCSI models.

HP ProLiant DL380 Generation 4 Specifications

General

Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Form Factor	2U Rack
Processor	Intel Xeon (various models)
Memory Type	DDR2 SDRAM
Storage	SAS/SATA HDD
Drive Bays	Up to 8 LFF or 16 SFF
RAID Support	RAID 0, 1, 5
Network Interface	Embedded Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	3 PCI-X, 3 PCI Express
Power Supply	Redundant Power Supplies optional
