Cabling 71
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item Component description SCSI IDs managed
1 Optional long SCSI cable 0, 1, 2, 3, 4, 5
2
Short SCSI cable used to
jumper the two SCSI buses
together
N/A

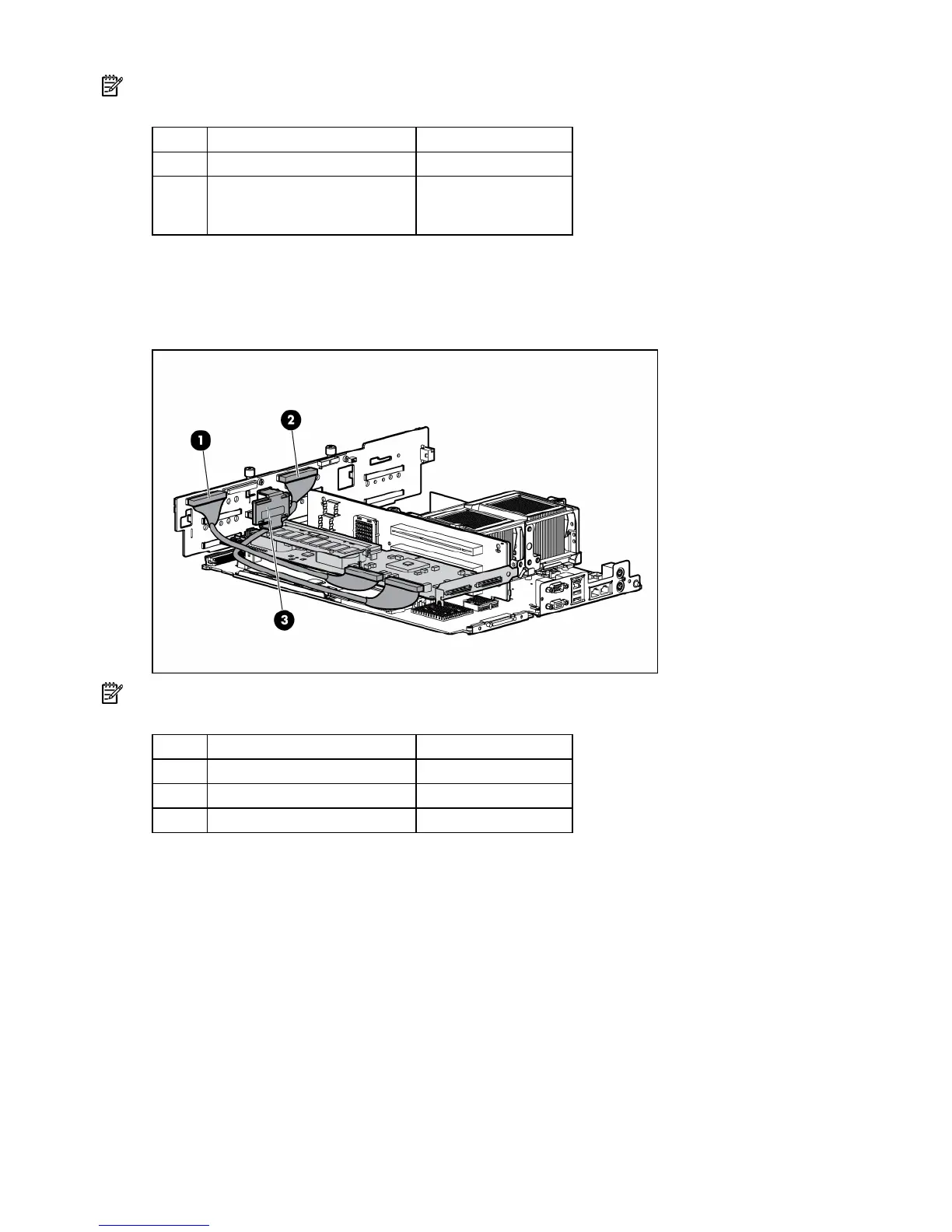

PCI duplex SCSI cabling
In the PCI duplex cabling configuration, an optional PCI array controller controls up to six hard drives
through two SCSI buses: one bus with up to two drives and one bus with up to four drives.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item Component description SCSI IDs managed
1 Optional long SCSI cable 0, 1
2 Optional long SCSI cable 2, 3, 4, 5
3 Optional terminator board N/A
Refer to "Installing the SCSI terminator board (on page 73)" for SCSI terminator board installation
procedures.
Mixed duplex SCSI cabling
In the mixed duplex SCSI cabling configuration, an optional PCI array controller controls up to six hard
drives through two SCSI buses: one bus with up to two drives and one bus with up to four drives. Two
configuration options are available for mixed duplex SCSI cabling.
