HP ProLiant DL380 Generation 4 User Manual

Component identification 12

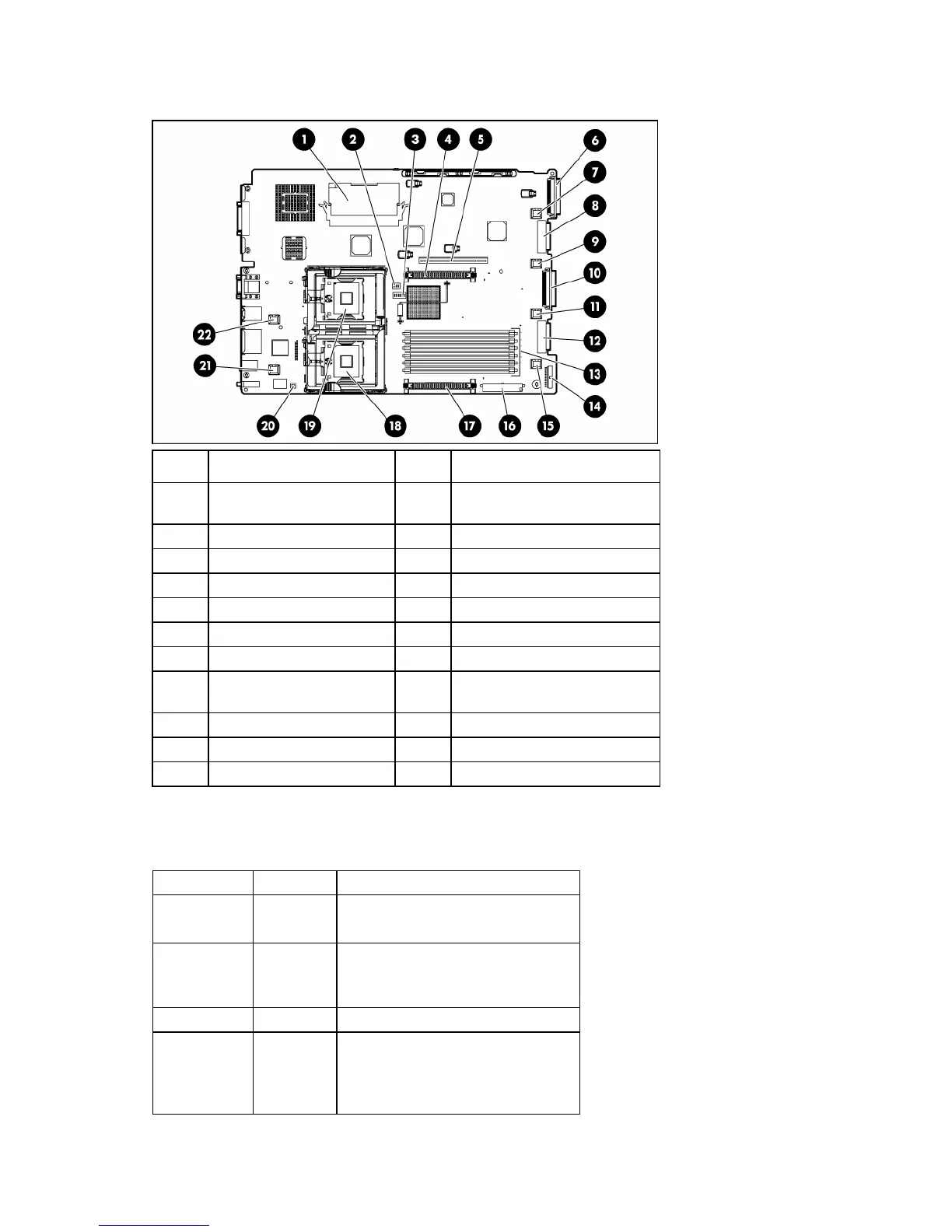

System board components
Item Description Item Description
1
Smart Array 6i Cache
Module Option*
12 Diskette drive system connector
2 Chassis ID switch 13 DIMM slots (1-6)
3 System maintenance switch 14 Power supply signal connector
4 PPM slot 2 15 Fan 6 connector
5 PCI riser cage connector 16 System power connector
6 SCSI connector (port 2)* 17 PPM slot 1
7 Fan 3 connector 18 Processor socket 1
8
DVD/CD-ROM drive
system connector
19 Processor socket 2
9 Fan 4 connector 20 NMI switch
10 SCSI connector (port 1)* 21 Fan 2 connector
11 Fan 5 connector 22 Fan 1 connector
*This feature applies only to SCSI models.
System maintenance switch
Position Default Function
S1 Off Off = iLO security is enabled.
On = iLO security is disabled.
S2 Off
Off = System configuration can be
changed.
On = System configuration is locked.
S3 Off Reserved
S4 Off
Off = Booting from diskette is
controlled by RBSU.
On = Booting from diskette is enabled
and RBSU is overridden.

HP ProLiant DL380 Generation 4 Specifications

General

Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Form Factor	2U Rack
Processor	Intel Xeon (various models)
Memory Type	DDR2 SDRAM
Storage	SAS/SATA HDD
Drive Bays	Up to 8 LFF or 16 SFF
RAID Support	RAID 0, 1, 5
Network Interface	Embedded Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	3 PCI-X, 3 PCI Express
Power Supply	Redundant Power Supplies optional
