Cabling 67

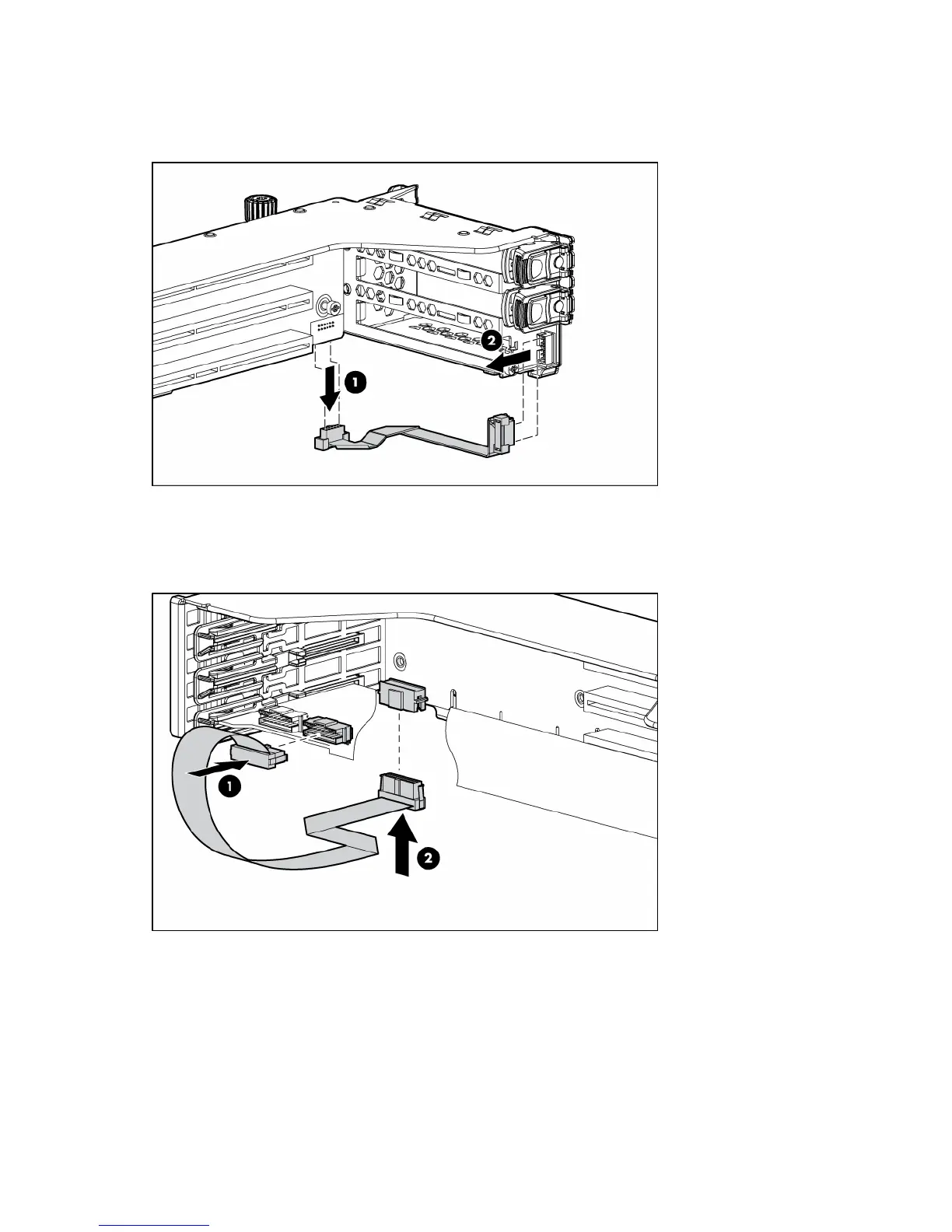

Optional PCI Hot Plug backplane cabling
The server contains a PCI Hot Plug backplane that is part of the PCI Hot Plug option and provides hot-plug
capability for two expansion slots. A ribbon cable connects the PCI Hot Plug backplane to the riser board.
RILOE II cabling
The 30-pin Remote Insight cable ships with the RILOE II cable kit. For more information, refer to the
Remote Insight Lights-Out Edition II User Guide on the Documentation CD.
