HP ProLiant DL380 Generation 4 User Manual

Component identification 9

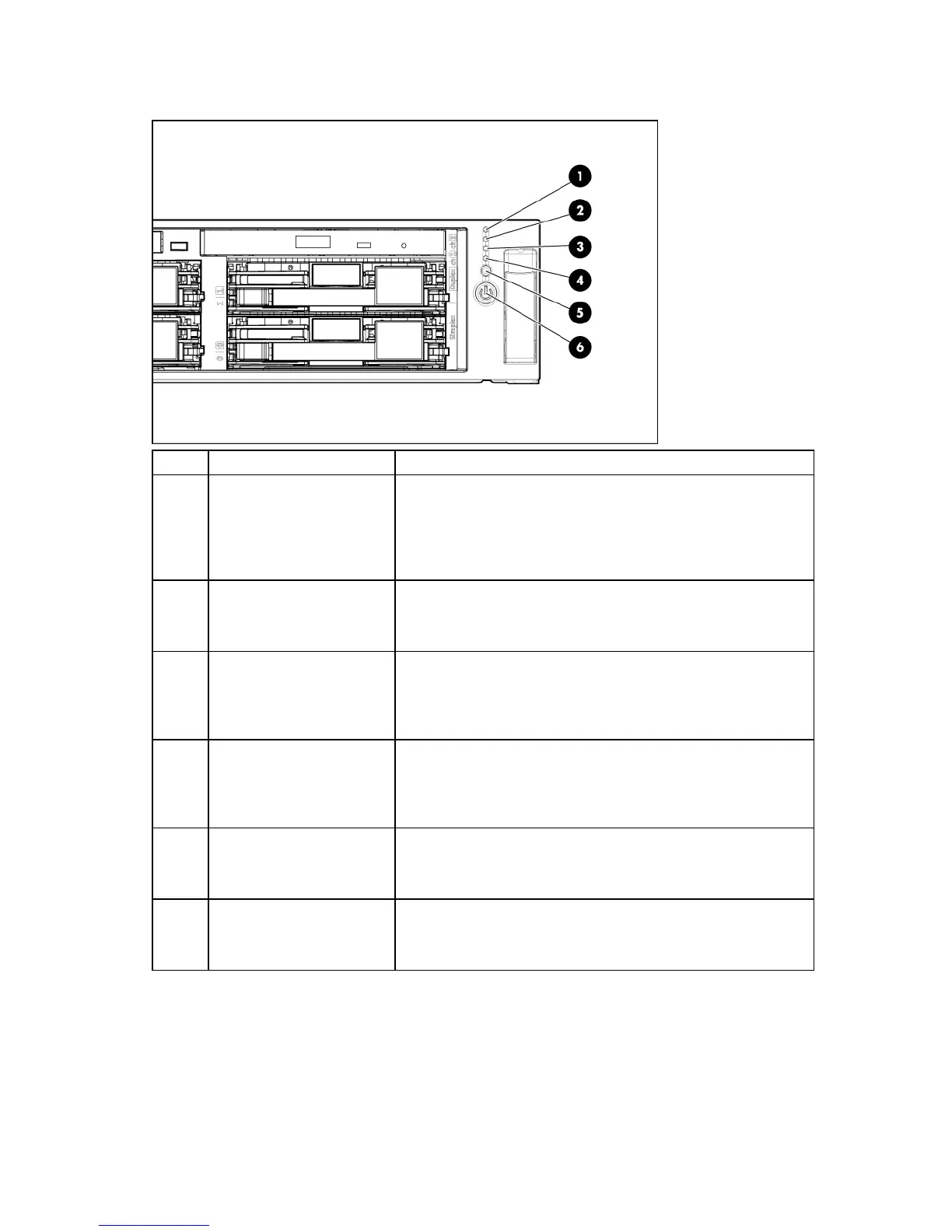

Front panel LEDs and buttons
Item Description Status
1 Internal health LED Green = Normal
Amber = System degraded. Refer to system board LEDs to identify
component in degraded state.
Red = System critical. Refer to system board LEDs to identify
component in critical state.
2
External health LED
(power supply)
Green = Normal
Amber = Power redundancy failure
Red = Critical power supply failure
3 NIC 1 link/activity LED Green = Network link
Flashing = Network link and activity
Off = No link to network. If power is off, view the rear panel
RJ-45 LEDs for status.
4 NIC 2 link/activity LED Green = Network link
Flashing = Network link and activity
Off = No link to network. If power is off, view the rear panel
RJ-45 LEDs for status.
5 UID LED button Blue = Activated
Flashing = System being remotely managed
Off = Deactivated
6
Power On/Standby
button/system power LED
Green = System on
Amber = System shut down, but power still applied
Off = Power cord not attached or power supply failure

HP ProLiant DL380 Generation 4 Specifications

General

Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Form Factor	2U Rack
Processor	Intel Xeon (various models)
Memory Type	DDR2 SDRAM
Storage	SAS/SATA HDD
Drive Bays	Up to 8 LFF or 16 SFF
RAID Support	RAID 0, 1, 5
Network Interface	Embedded Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	3 PCI-X, 3 PCI Express
Power Supply	Redundant Power Supplies optional
