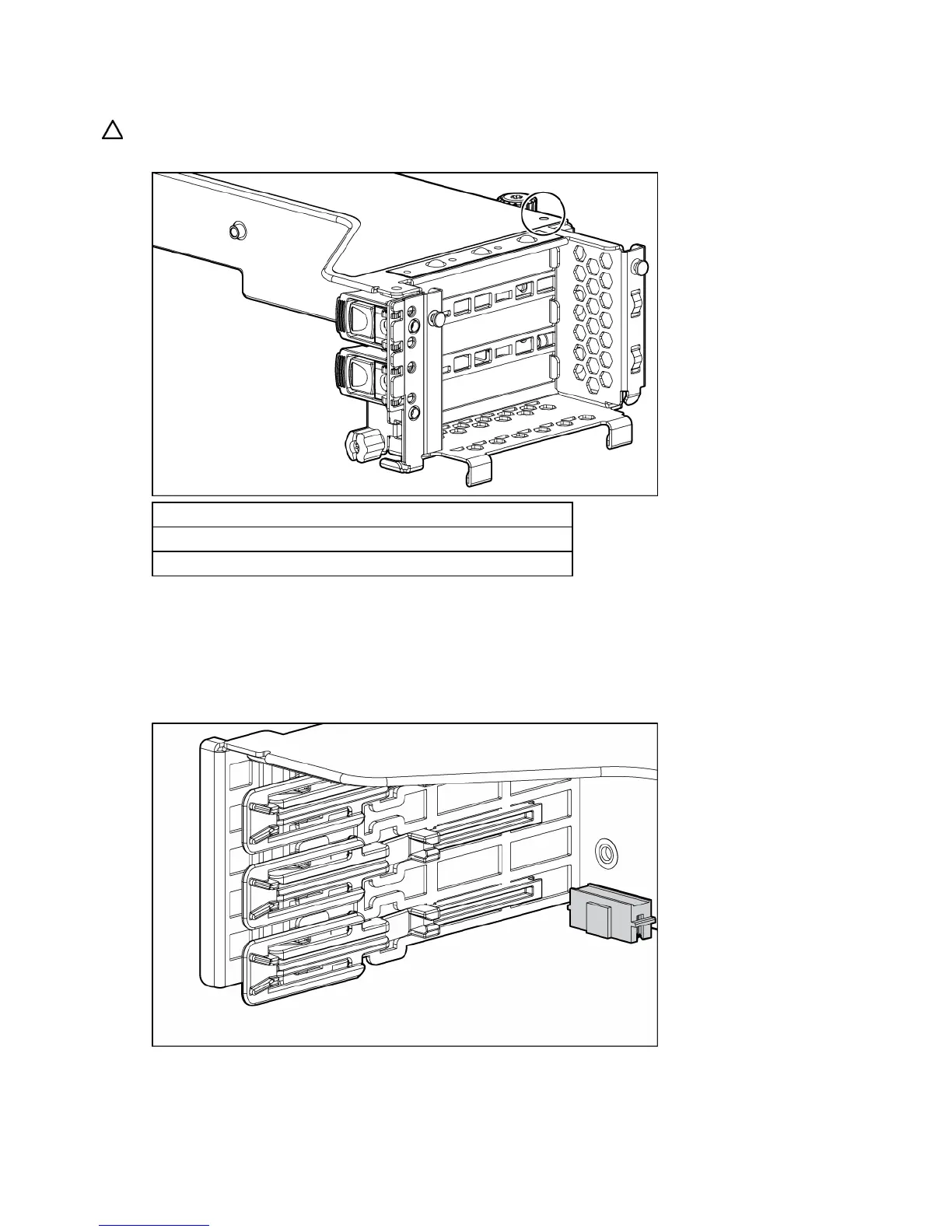

PCI riser cage LED
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the PCI riser cage.
Status
On = AC power connected
Off = AC power disconnected
Remote management connector
The 30-pin remote management connector, located on the PCI riser cage, is used to cable the Remote
Insight Lights-Out Edition II option. For more information, refer to "RILOE II cabling (on page 67)" or the
Remote Insight Lights-Out Edition II User Guide on the Documentation CD.
