Cabling 72

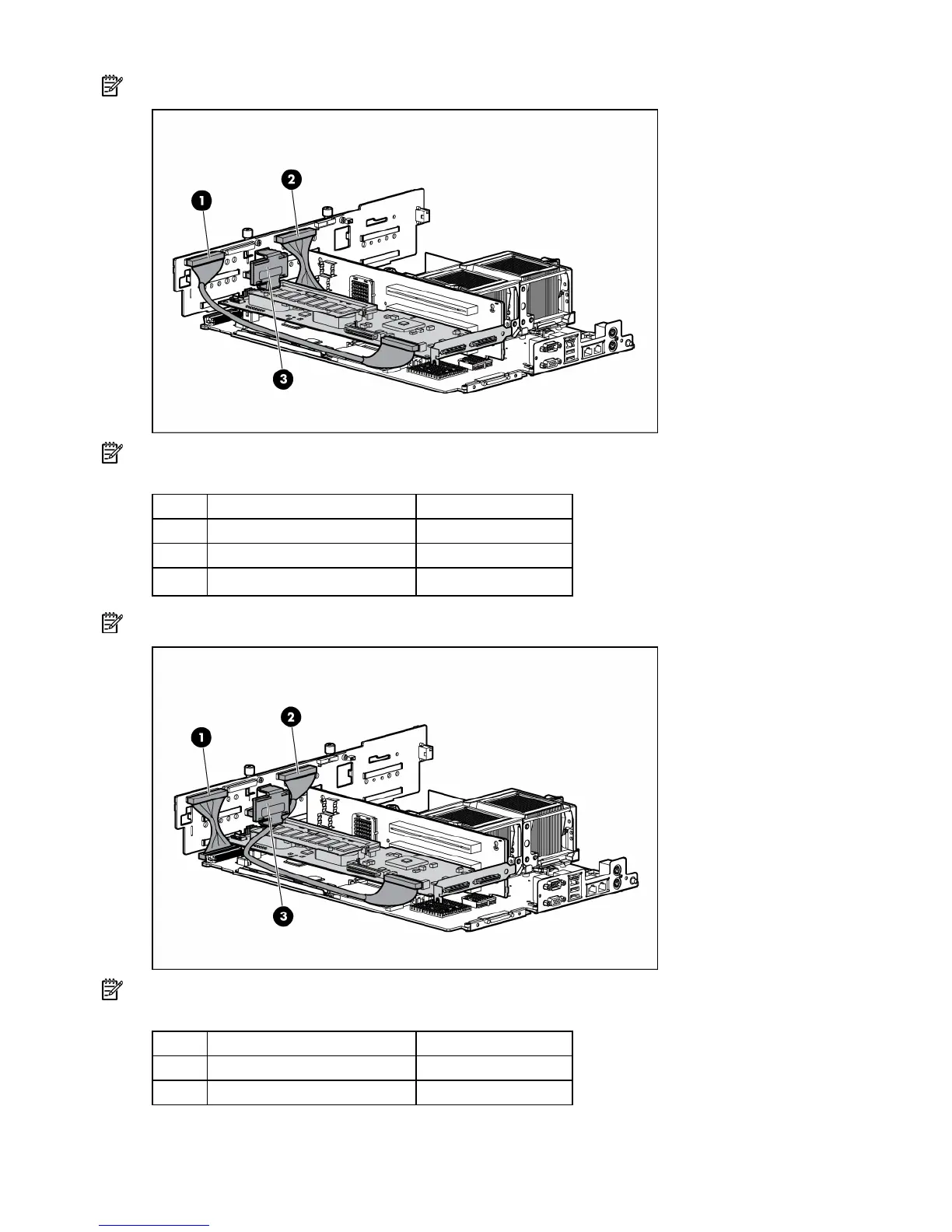

NOTE: This specific cabling configuration does not support external VHDCI.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item Component description SCSI IDs managed
1 Optional long SCSI cable 0, 1
2 Short SCSI cable 2, 3, 4, 5
3 Optional terminator board N/A
NOTE: This specific cabling configuration supports external VHDCI.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
Item Component description SCSI IDs managed
1 Short SCSI cable 0, 1
2 Optional long SCSI cable 2, 3, 4, 5
