Hardware options installation 63
7.

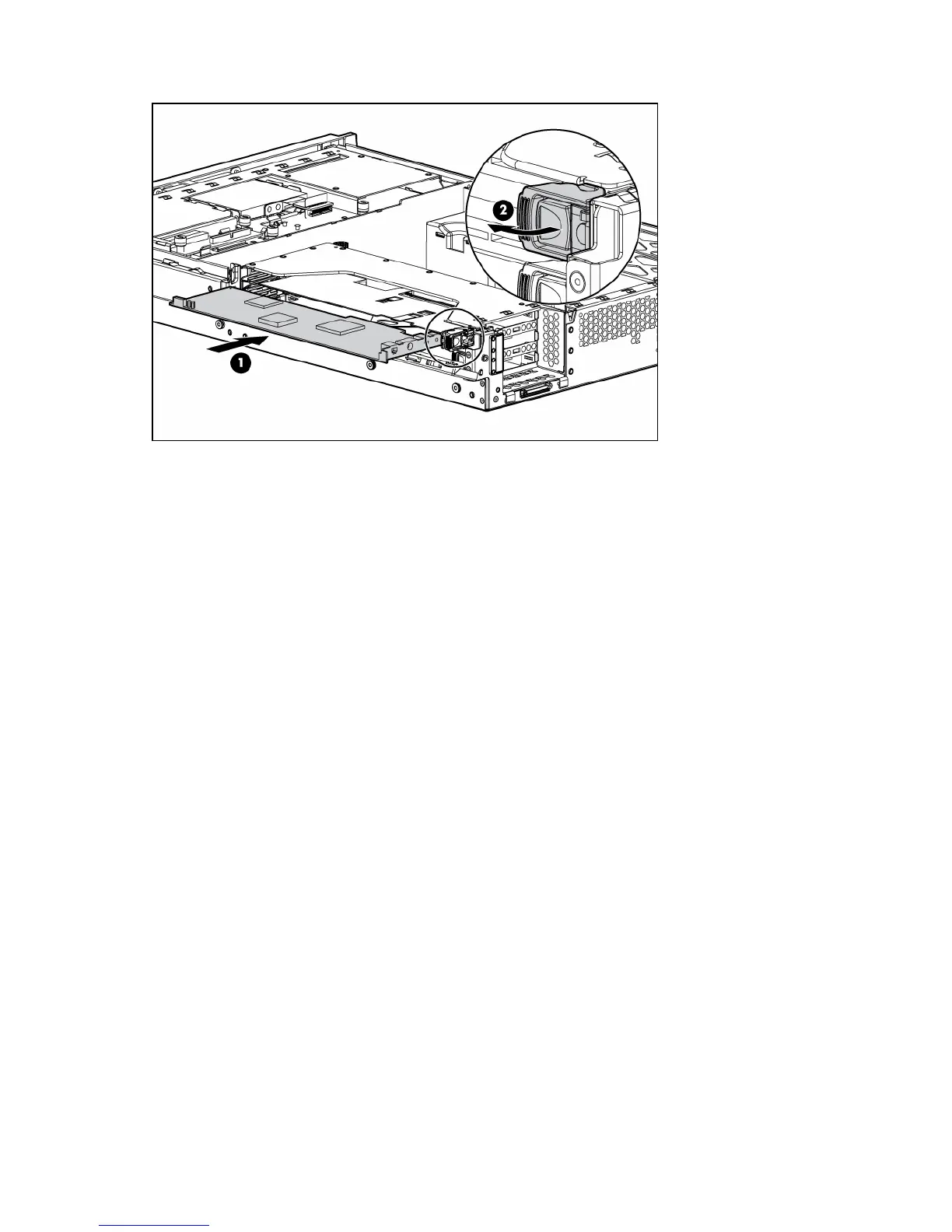

Install the expansion board.
8. Lock the PCI retaining clip.
9. Connect any required internal or external cables to the expansion board. Refer to the documentation
that ships with the expansion board.
10. Close the slot release lever.
11. Press the PCI Hot Plug button and wait for the power LED to illuminate green without flashing.
12. Close the PCI riser cage door.
13. Install the access panel ("Installing the access panel" on page 29).
