System LEDs and switches
E-2 HP ProLiant DL585 Server User Guide
Front panel LEDs

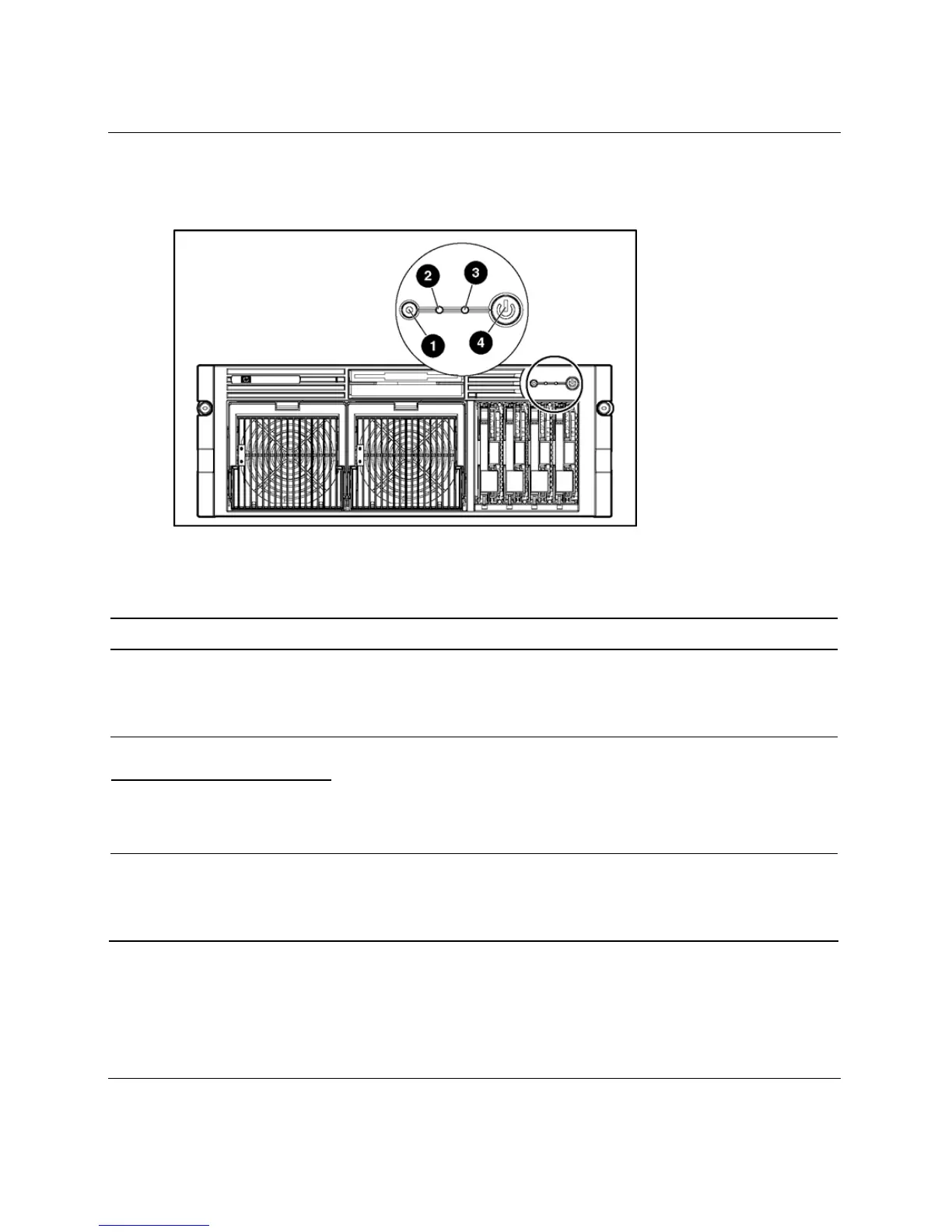

Figure E-1: Front panel LEDs
Table E-1: Front panel LEDs
Item Description Status
1 Unit identification Blue = Activated
Blue flashing = System being managed remotely
Off = Deactivated
2 Internal health
3 External health
Green = Normal
Red = System critical
Amber = System degraded
Off = System off/Standby
4 Power Green = On
Amber = Off (auxiliary power only)
Off = Power cord not attached to the server or power supply failure
