Hardware options installation 75
b.
Install a hot-plug power input module in power supply bay 2.
15. If removed, install the secondary PCI riser cage.
16. Install the access panel (on page 19).
17. Install the server into the rack.
18. Connect the power cords to the power supplies.
19. To prevent accidental power cord disconnection when sliding the server in and out of the rack,
secure the power cord in the strain relief strap attached to the power input module handle:
a. Unwrap the strain relief strap from the power input module handle.
CAUTION:
Avoid tight bend radii to prevent damaging the internal wires of a power cord or a
server cable. Never bend power cords and server cables tight en
ough to cause a crease in the
sheathing.

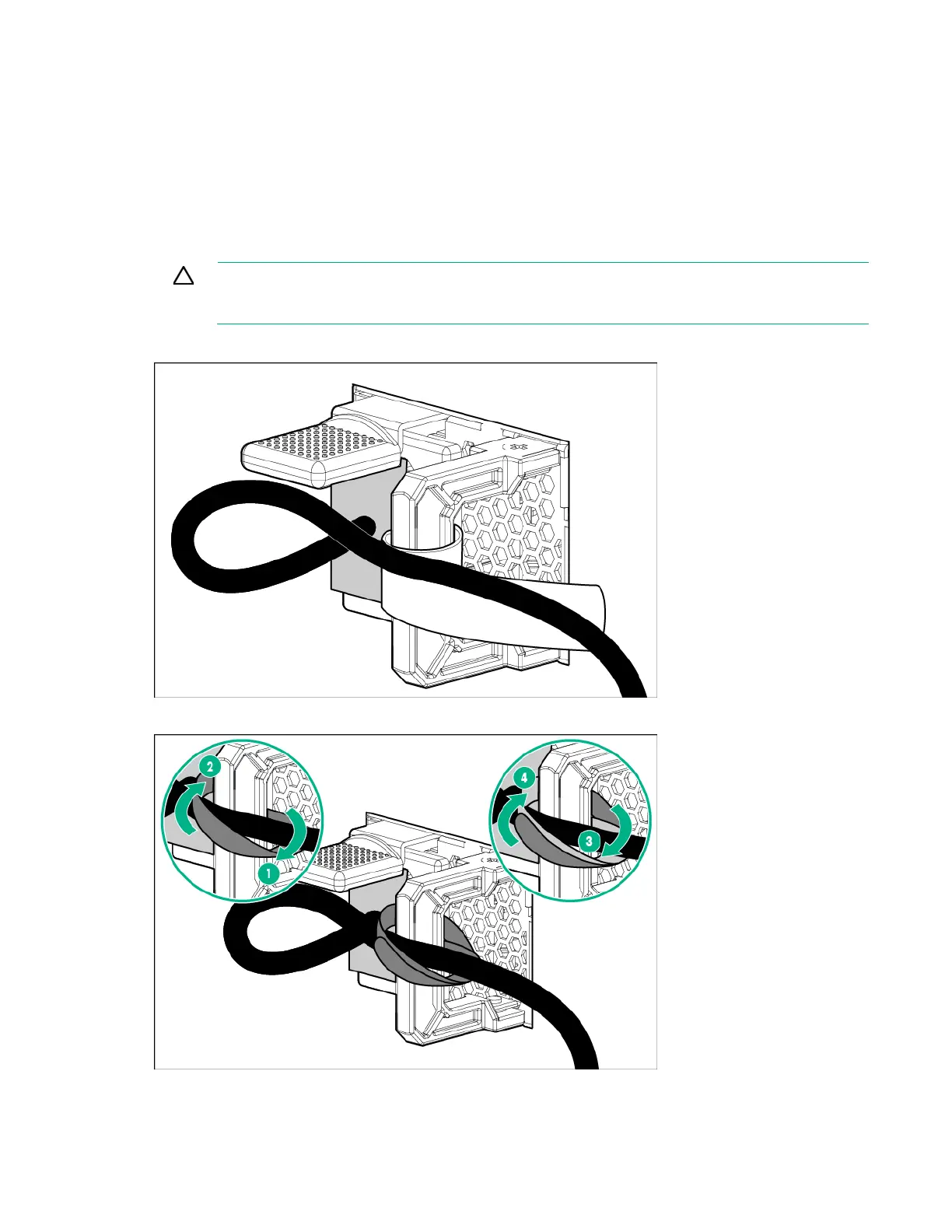

b. Bend the plug end of the power cord in the position shown in the following image.
c. Secure the power cord with the strain relief strap.
20. Connect the power cords to the AC power source.
