Hardware options installation 65
7.

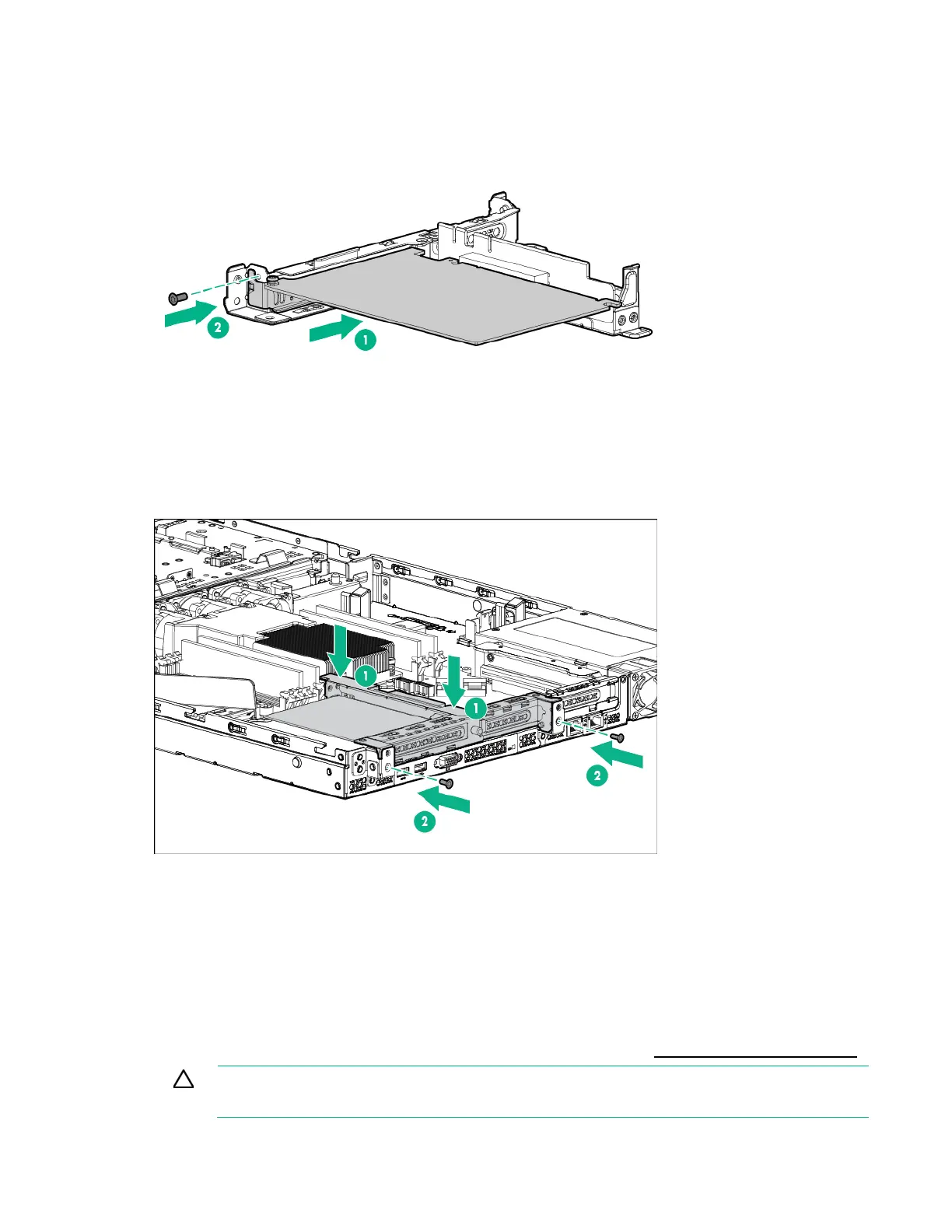

Install the expansion board.
8. Align the PCI riser board with the corresponding connector on the system board, and then press
down the riser cage.
9. Tighten the two screws to secure the cage.
10. Install the access panel (on page 19).
11. Install the server into the rack.
12. Power up the server (on page 15).
Expansion board options
The server has both full-height/half-length and low-profile expansion slots for controller option installation.
For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
CAUTION: To prevent damage to the server or expansion boards, power down the server,
and disconnect all power cords before removing or installing the PCI riser cage.
