FunctionSwitchDescriptionPosition
System configuration can be changedOffConfiguration lock2
System configuration is lockedOn
Reserved—Reserved3
Reserved—Reserved4
Password is enabledOffPassword protection override5
Password is disabledOn
Switch has no functionOffReset configuration6
ROM reads system configuration as invalidOn
See Table 1-1 (page 19) for details.POST LED switch 17
POST LED switch 28
Table 1-1 System Maintenance Switch Positions 7 and 8 Detail
Displayed on LED8–LED1Position 8Position 7
Port 85OffOff
Port 84OnOff
iLOOffOn
Embedded SAS statusOnOn

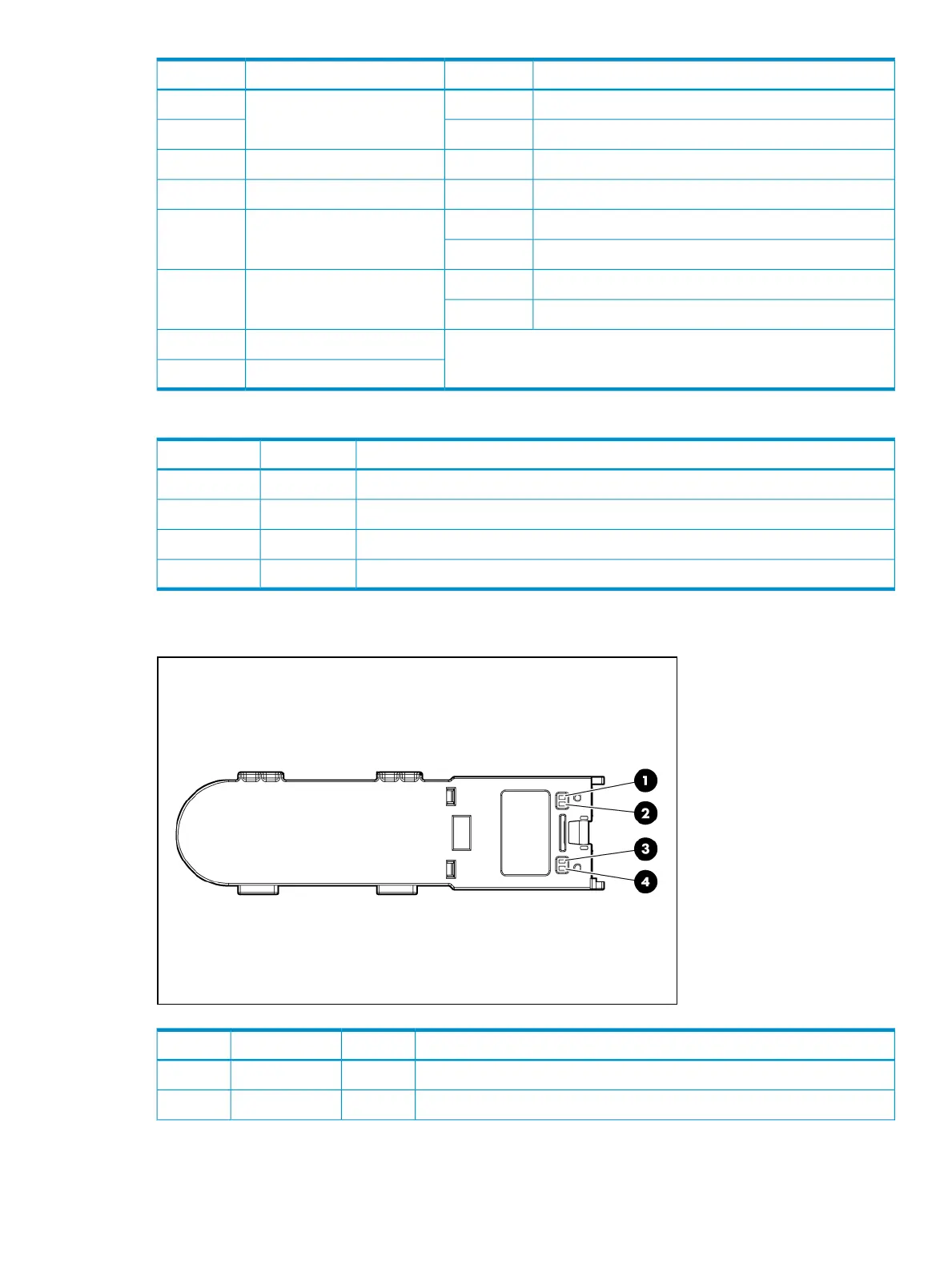

Battery pack LEDs
DescriptionColorLEDItem ID
To interpret the illumination patters of this LED, see Table 1-2 (page 20)GreenBBWC status1
To interpret the illumination patters of this LED, see Table 1-2 (page 20)AmberBattery health2
Battery pack LEDs 19
