HP ProLiant ML310 User Manual

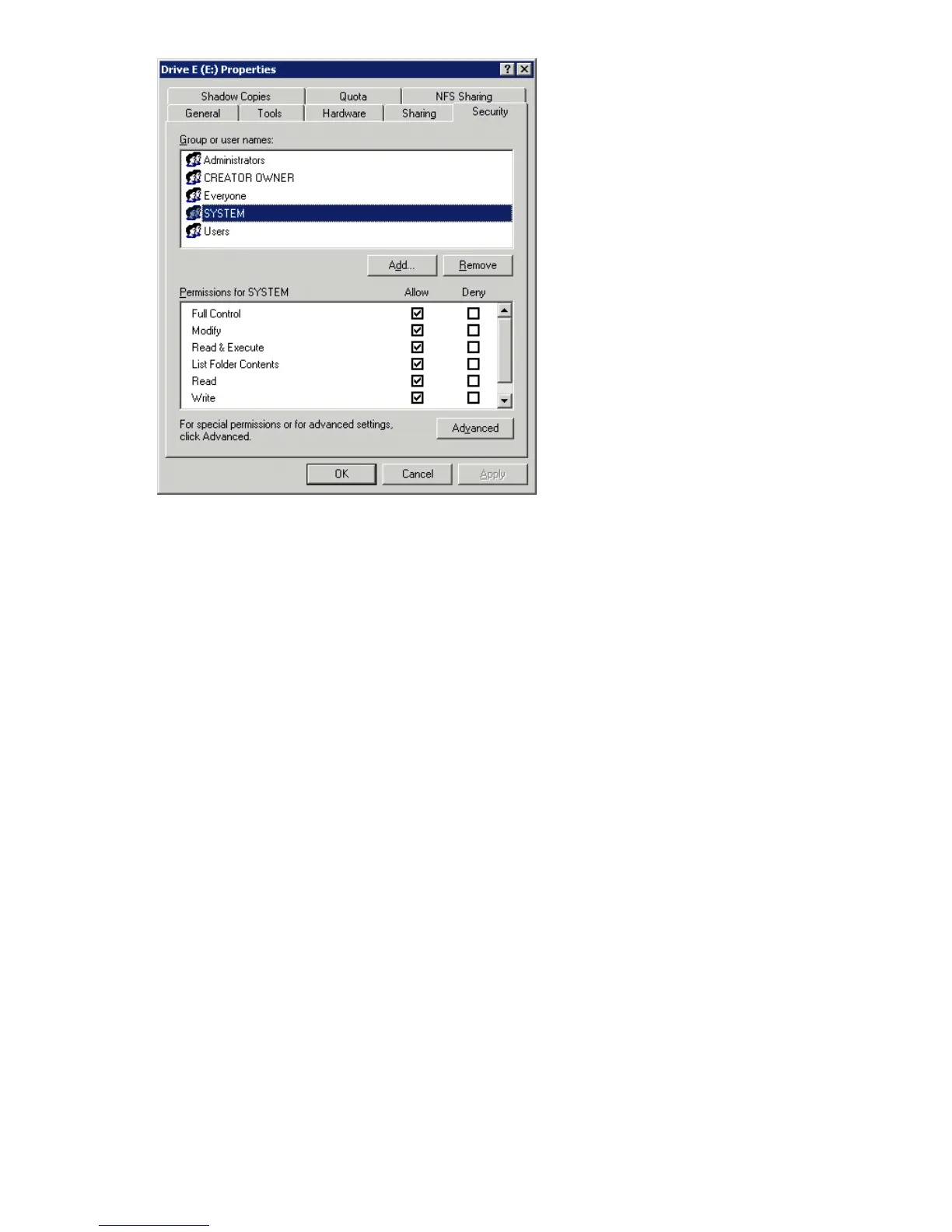

Figure 14 Properties dialog box, Sec urit y tab
Several options are available on the Security tab:
• To add use
rs and groups to the permissions list, click Add. Follow the dialog box instructions.
• To remove users and groups from the permissions list, highlight the desired user or group,
and then click Remove.
• The cent
er section of the Security tab lists permission levels. When new users or groups
are adde
d to the permissions list, select the appropriate boxes to configure the common
file-ac
cess levels.
3. To modify ownership of files, or to modify individual file access level permissions, click Advanced.
Figure 15 illustrates the properties available on the Advanced Securit y Settings dialog box.
58
File server management

HP ProLiant ML310 Specifications

General

Form Factor	Tower
Processor Sockets	1
Maximum Memory	32GB
Memory Slots	4
Storage Controller	HP Dynamic Smart Array B120i
Processor	Intel Xeon E3-1200 series
Memory Type	DDR3
RAID Support	RAID 0, 1, 10
Storage	Up to 4 LFF (3.5-inch) drives
Hard Drive Interface	SATA
Network	1Gb Ethernet
Power Supply	350W
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Expansion Slots	1 x PCIe 2.0 x1
