Component identification 11
Item Description Status
3
Power supply LED Green = Normal
Off = One or more of the following conditions exists:
Power is unavailable.
Power supply failed.
Power supply is in standby mode.
Power supply exceeded current limit.
4
UID LED Blue = Activated
Flashing blue = System is being managed remotely
Off = Deactivated
5
iLO 4 link LED Green or flashing green = Network activity
Off = No network activity
6
iLO 4 activity LED Green = Linked to network
Off = No network connection

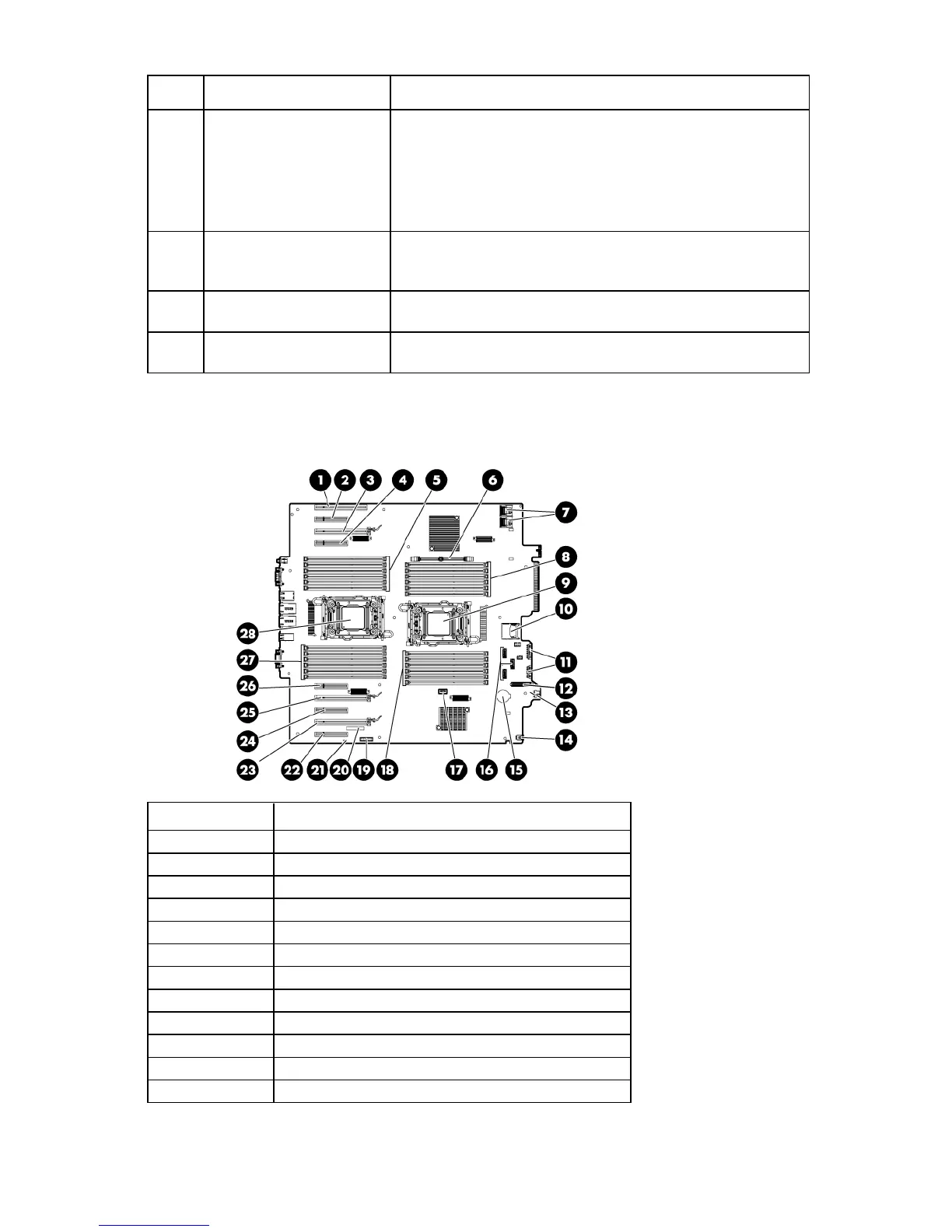

System board components
Item Description
1
Slot 1 PCIe3 x16 (8, 4, 1)
2
Slot 2 PCIe3 x8 (4, 1)
3
Slot 3 PCIe3 x16 (16, 8, 4, 1)
4
Slot 4 PCIe3 x8 (4, 1)
5
Processor 1 DIMM slots
6
Smart Array P420i memory cache module
7
Mini-SAS connectors (2)
8
Processor 2 DIMM slots
9
Processor socket 2
10
SD card slot
11
Front panel connectors (2)
12
Fan cage connector
