Component identification 14
Systems Insight Display LEDs

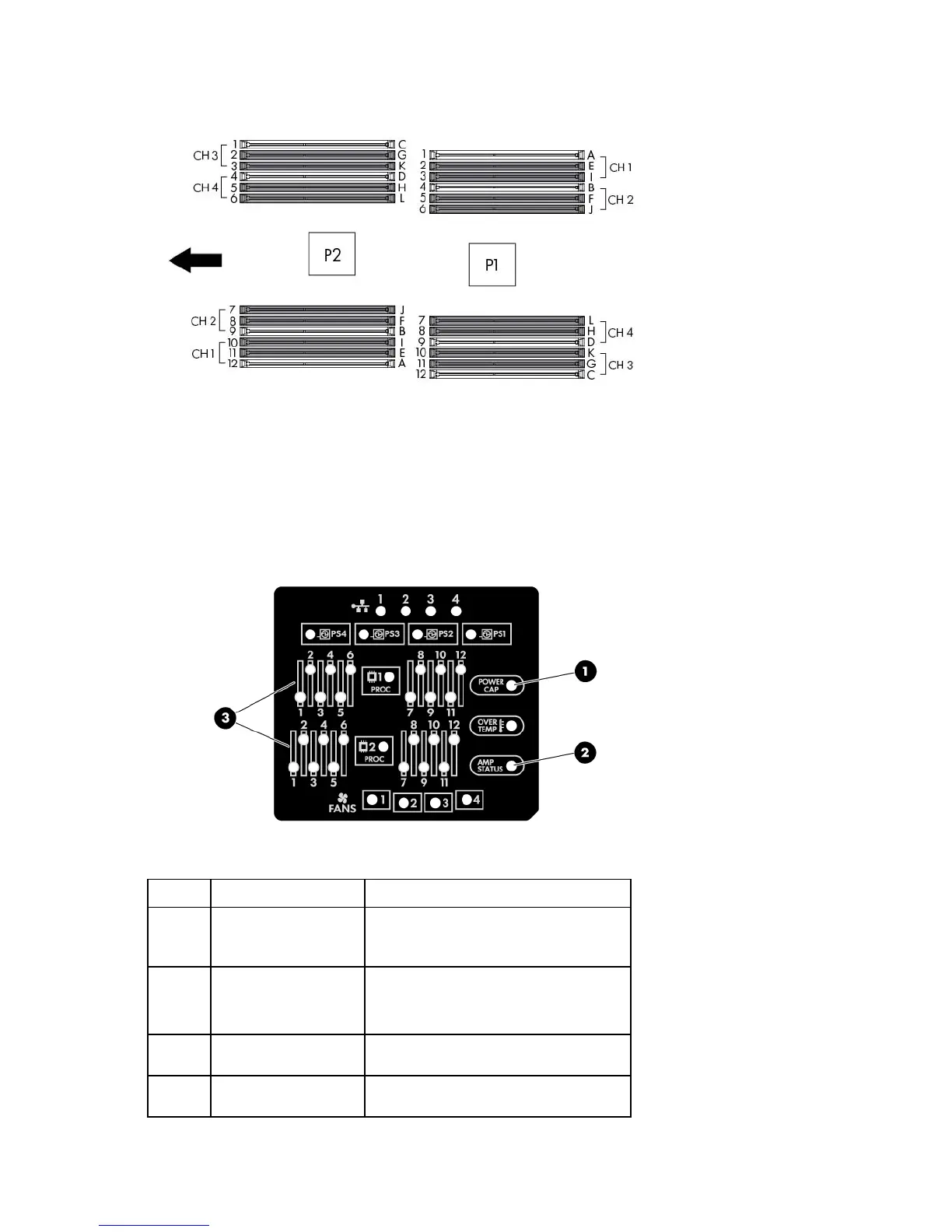

The HP Systems Insight Display LEDs represent the system board layout.
Item Description Status
1
Power cap To determine Power cap status, see
"Systems Insight Display LED combinations
(on page 15)."
2
AMP Status Green = AMP mode enabled
Amber = Failover
Off = AMP mode disabled
3
DIMM LEDs Amber = DIMM error
Off = Normal
All other LEDs Amber = Failure
Off = Normal
