Hardware options installation 64
7.

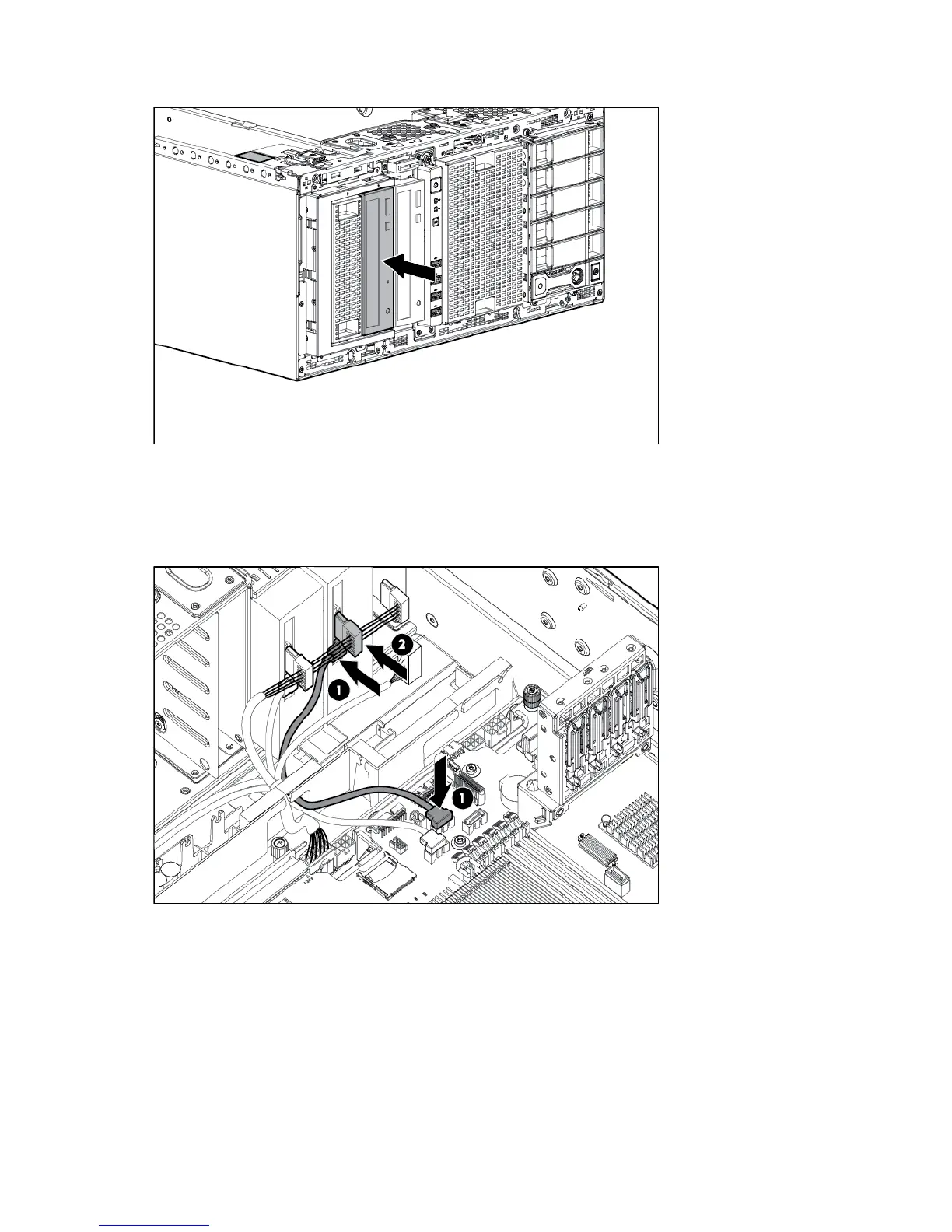

Install the optical drive into the drive cage.
8. Remove the air baffle (on page 25).
9. Remove the fan cage.
10. Connect the power cable from the drive to the system board.
11. Connect the SATA cable from the drive to the system board.
12. Install the fan cage.
13. Install the air baffle (on page 26).
14. For tower models, do the following:
a. Install the access panel (on page 24).
b. Return the server to an upright position.
15. For rack models, do the following:
a. Install the rack bezel (on page 23).
