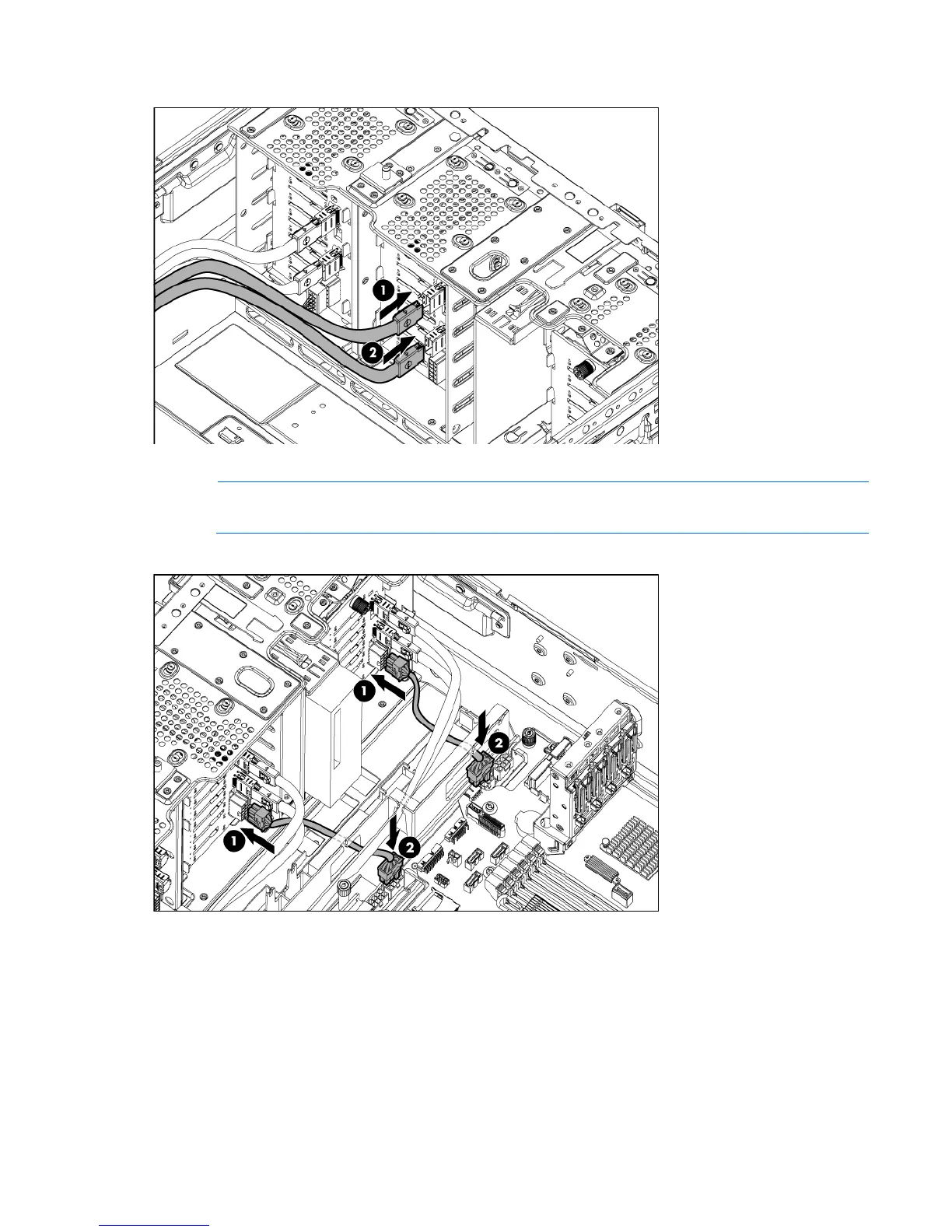

Connect the mini-SAS cables to the drive cage backplane option.
12. Connect the mini-SAS cables to the SAS controller option.
NOTE: For more information about connecting the cables to SAS controller option, see the
documentation that ships with SAS controller option kit.
13. Connect the power cable to the system board connector appropriate for your configuration.
14. Install the fan cage.
15. Install the air baffle (on page 26).
16. For tower models, do the following:
a. Install the access panel (on page 24).
b. Return the server to an upright position.
17. For rack models, do the following:
a. Install the rack bezel (on page 23).
