Hardware options installation 88
8.

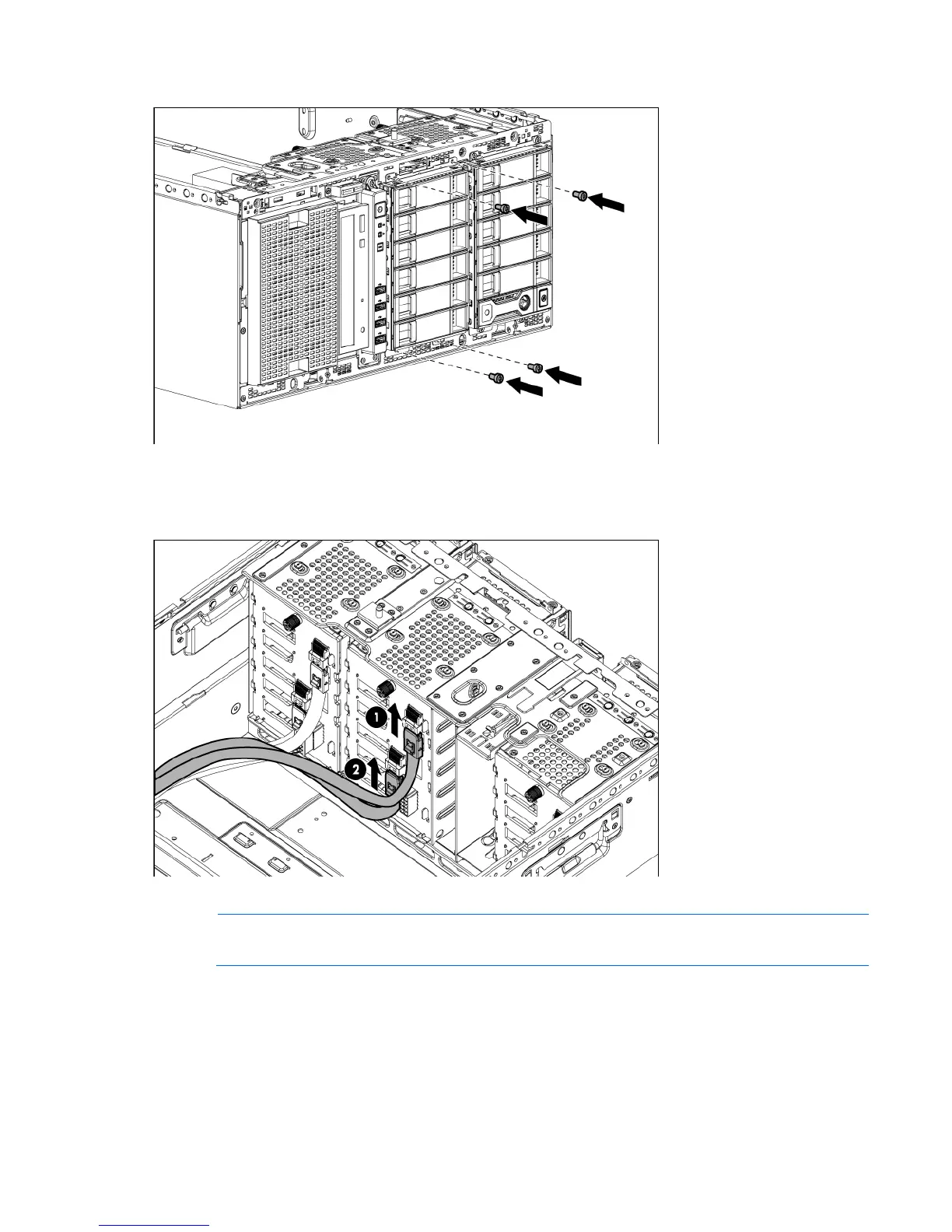

Using the T-15 screws, secure the optional LFF drive cage to the server.
9. Remove the air baffle (on page 25).
10. Remove the fan cage.
11. Connect the mini-SAS cables to the drive backplane option.
12. Connect the mini-SAS cables to the SAS controller option.
NOTE: For more information about connecting the cables to SAS controller option, see the
documentation that ships with SAS controller option kit.
