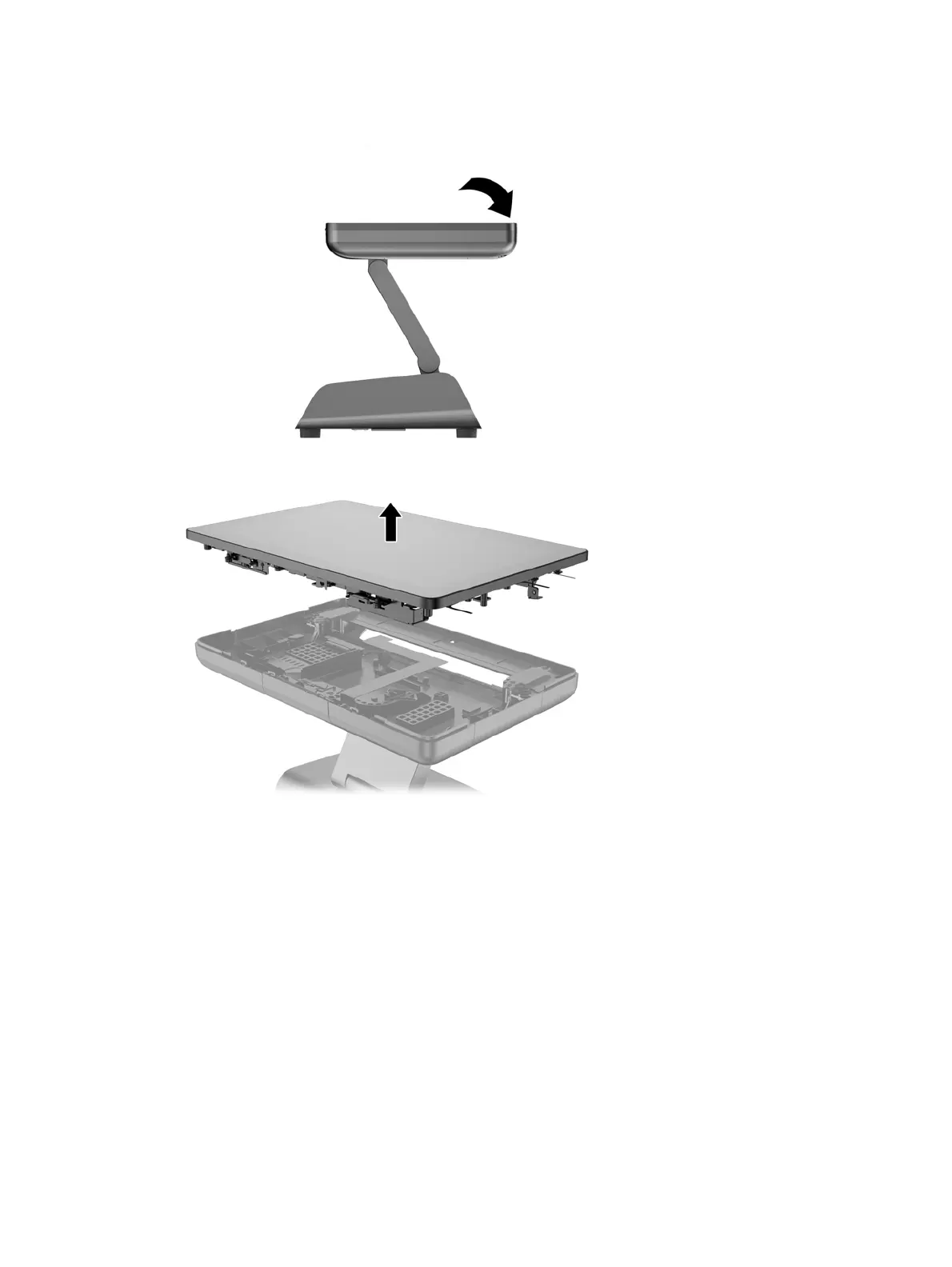

4. Rotate the display head back to the horizontal position.

5. Lift the front panel straight up and off the rear casing.

32 Chapter 5 Removal and replacement procedures
