HP RP2 2000 - Page 45

To Next Page

To Previous Page

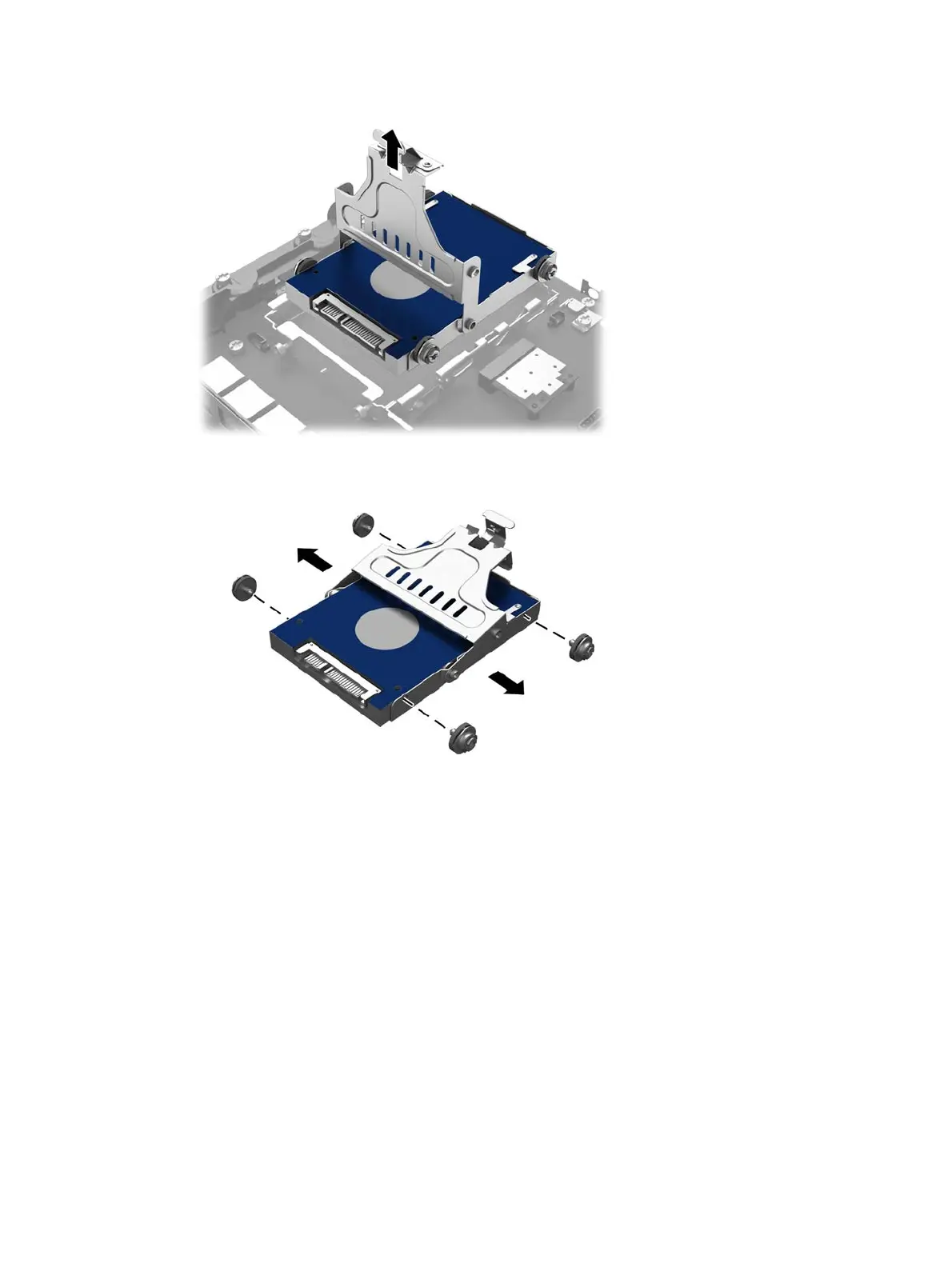

5. Lift the hard drive carrier straight up and out of the drive bay.

6. Remove the four grommet screws from the sides of the hard drive carrier.

Hard drive 37
