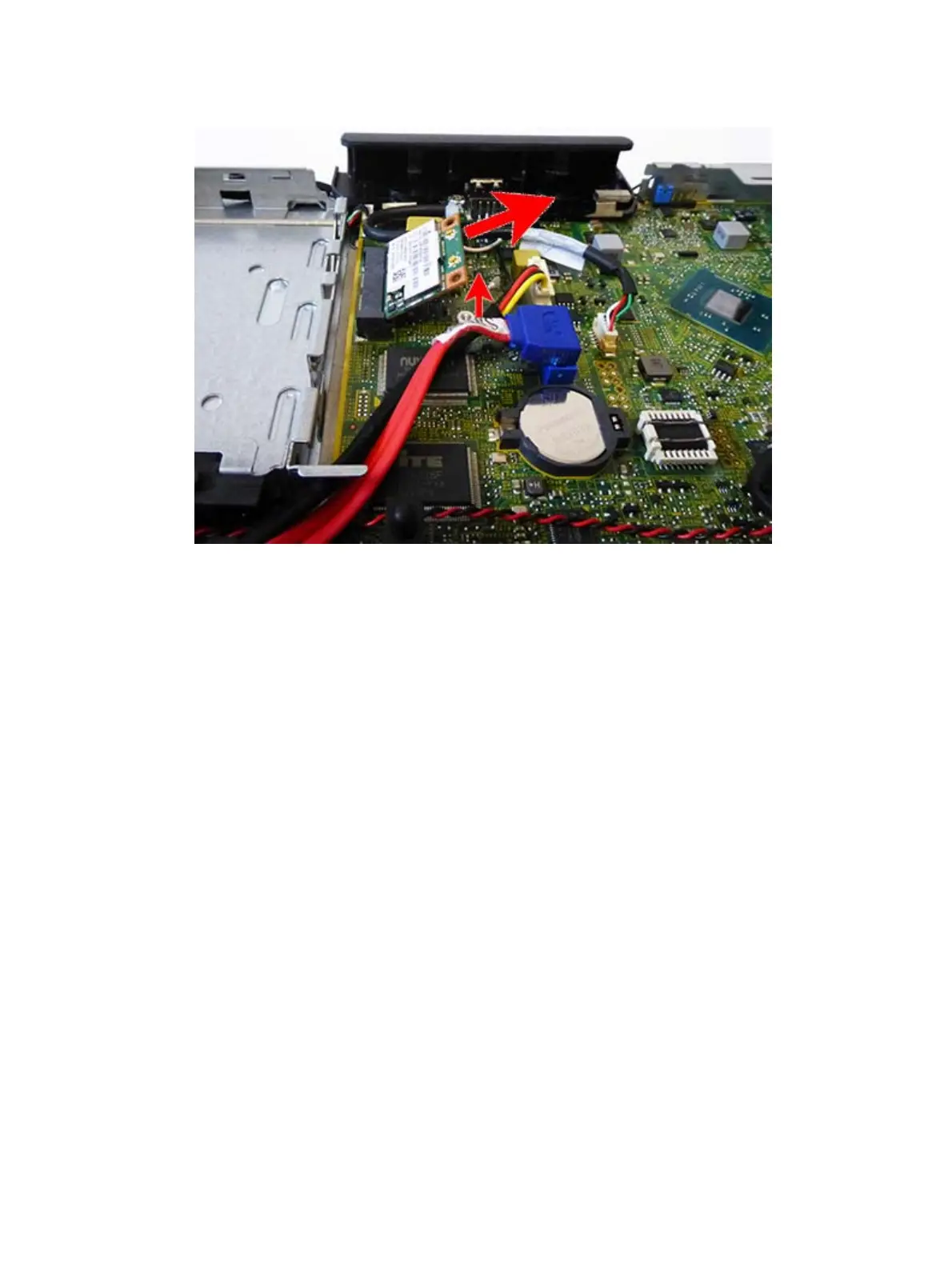

5. Lift the module to a 45-degree angle, and then pull it away to remove it from the socket.

To install a WLAN module, reverse the removal procedures.

WLAN module 41
