5.

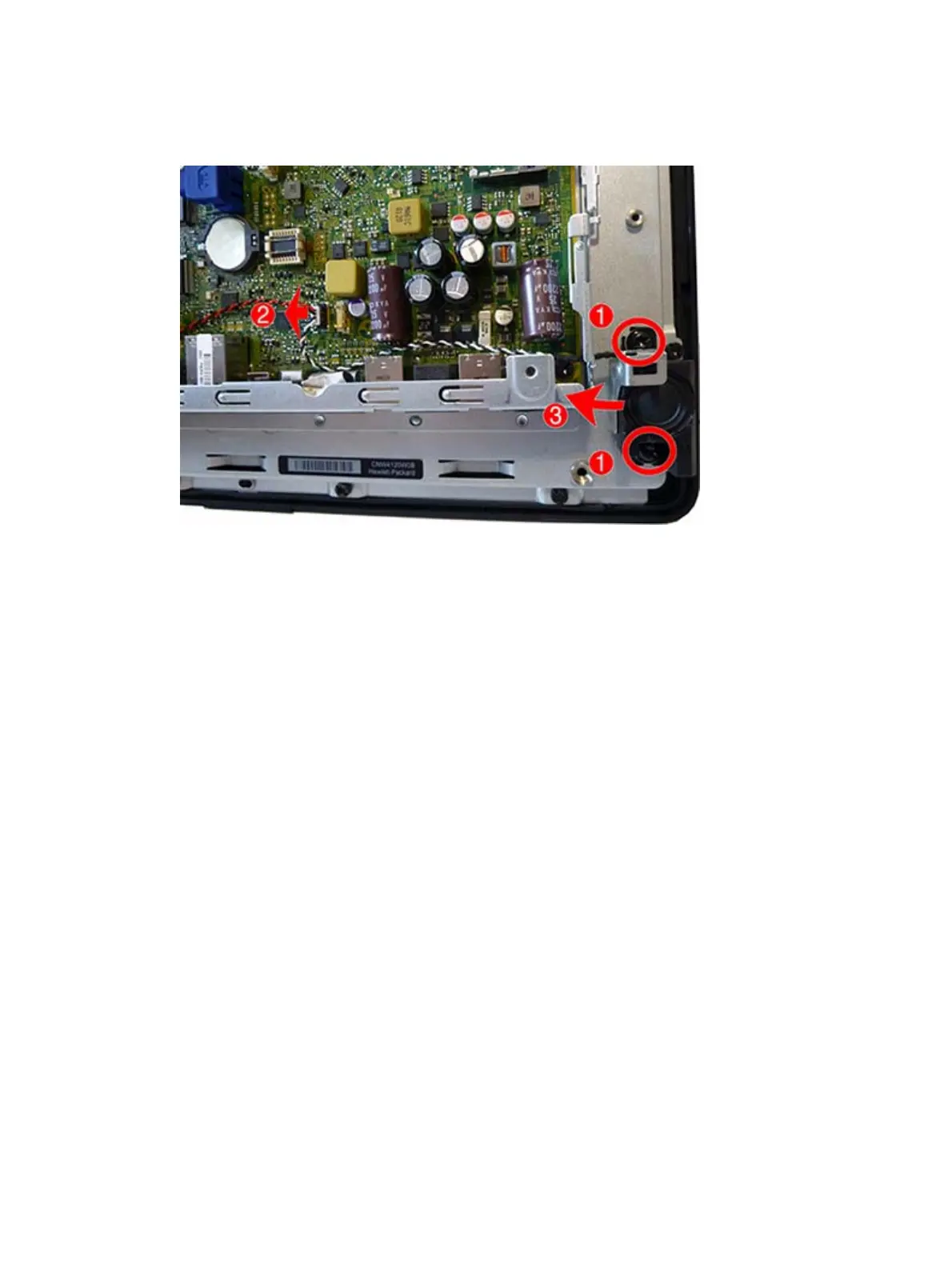

Remove the two Torx screws
(1)
that secure the right speaker to
the computer, disconnect the speaker
cable from the system boar
d connector labeled
SPKR
(2)
, and then lift the right speaker off the
computer
(3)
.
To replace the speakers, reverse the removal procedures.
48
Chapter 5 Removal and r
eplacement procedures
55
57
