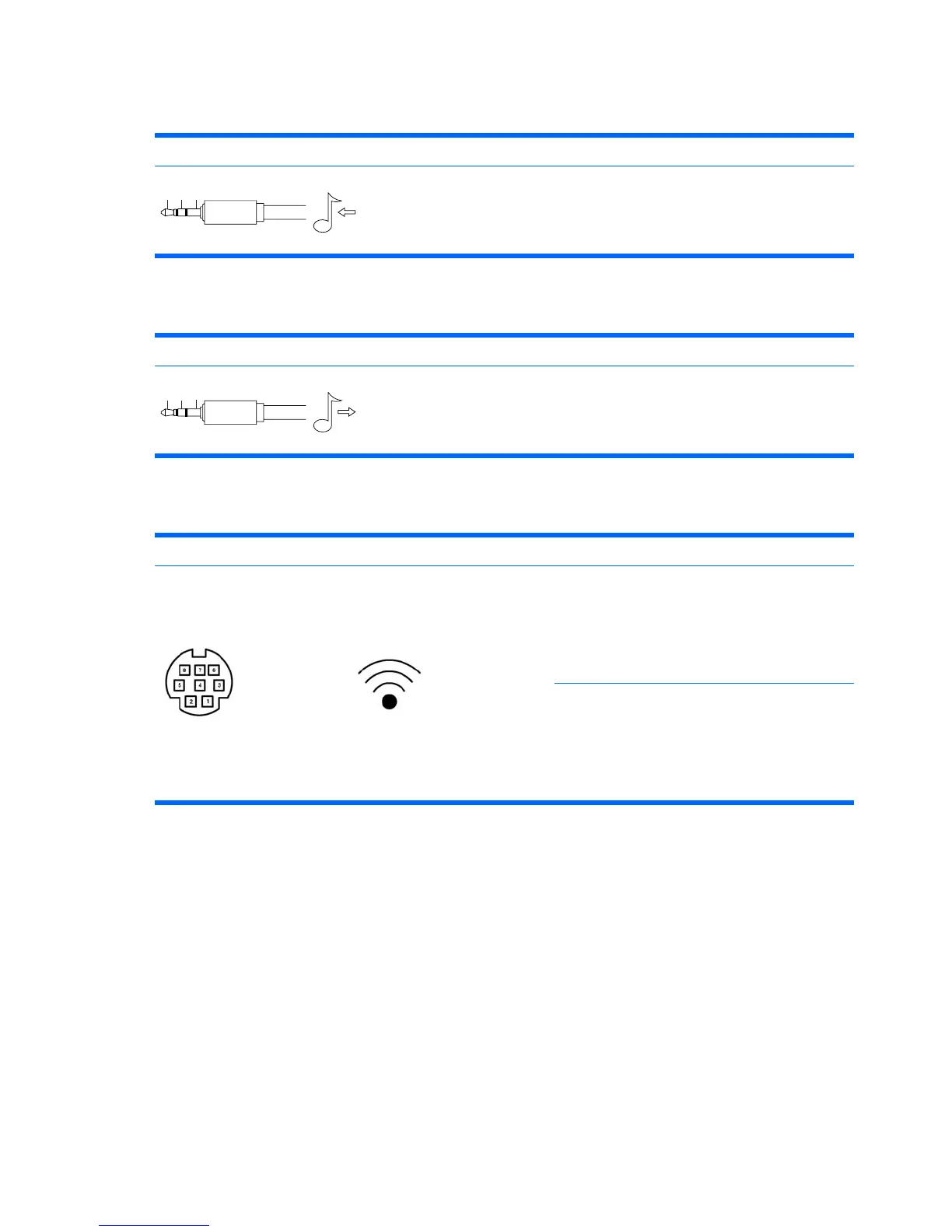

Line-in Audio
Connector and Icon (1/8” miniphone) Pin Signal
1
2
3
1 (Tip)
2 (Ring)
3 (Shield)
Audio_In_Left
Audio_In_Right
Ground
Line-out Audio
Connector and Icon (1/8” miniphone) Pin Signal
1
2
3
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Out_Left
Audio_Out_Right
Ground
External Infrared Transceiver
Connector and Icon Pin Signal
1
2
3
4
Transmit
Receive
Ground
5V
5
6
7
8
Mode
Not Used
Not Used
Not Used
120 Appendix A Connector Pin Assignments ENWW
