HP StorageWorks D2700 User Manual

I/O module
The I/O module provides the interface between the disk enclosure and the host.
Each I/O module has two ports that can transmit and receive data for bidirectional operation.

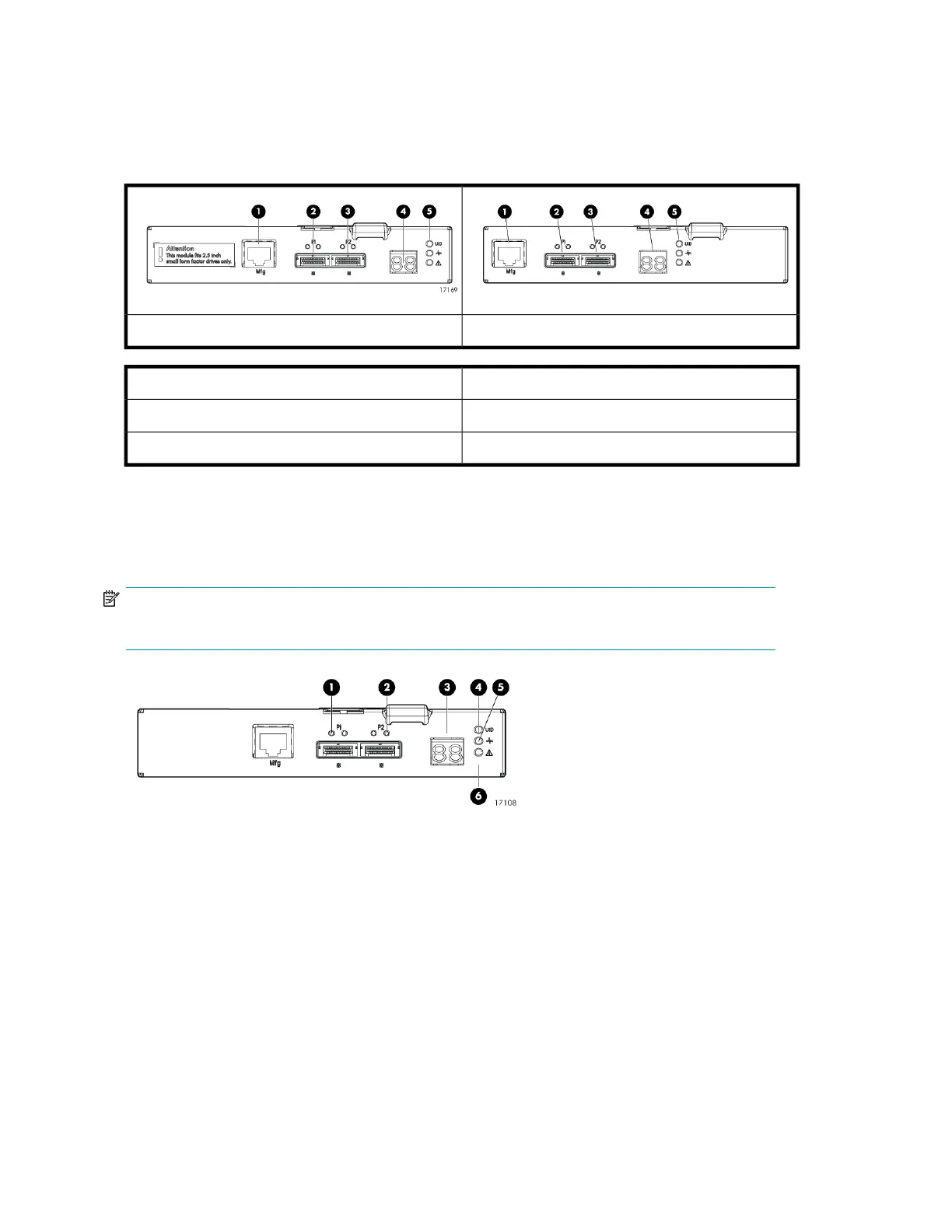

Large Form Factor I/O moduleSmall Form Factor I/O module
4. Double 7–segment display1. Manufacturing diagnostic port
5. I/O module LEDs2. SAS Port 1
3. SAS Port 2
I/O module LEDs
LEDs on the I/O module provide status information about each I/O port and the entire module.
NOTE:
The following image illustrates LEDs on the Small Form Factor I/O module.
Hardware16

HP StorageWorks D2700 Specifications

General

Form Factor	2U
Host Interface	6 Gb/s SAS
Redundant Power Supplies	Yes
Drive Type	SAS/SATA
RAID Support	Depends on the connected controller
Compatibility	HP ProLiant servers
Cooling	Redundant fans
Enclosure Type	Rack-mounted
