Power connector cable
Description Spare part number
Power connector cable 913730-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 28).
5. Disconnect the battery cable from the system board (see Battery on page 30).
Remove the power connector cable:

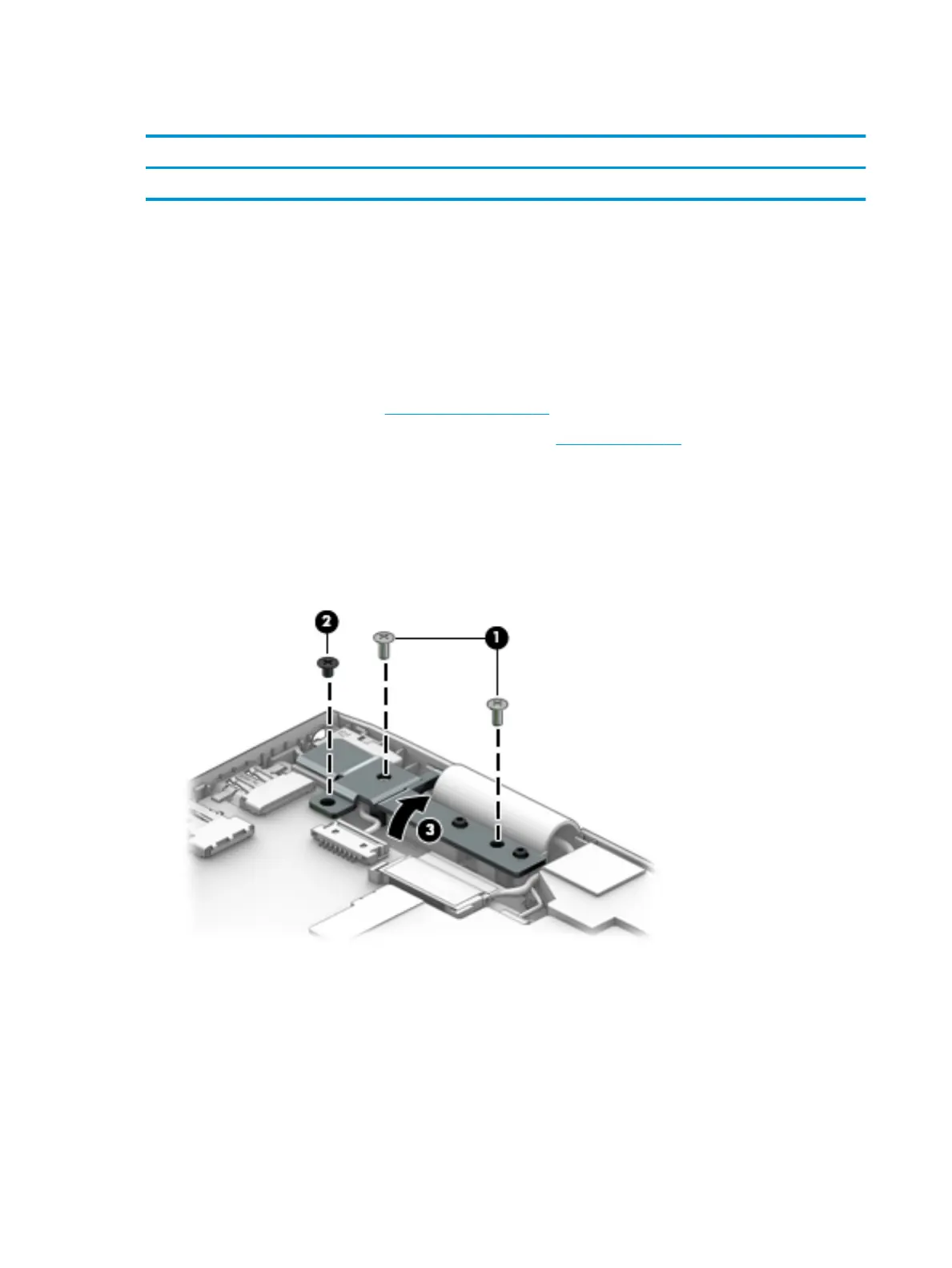

1. Remove the two Phillips PM2.5×6.3 screws (1) that secure the display right hinge to the keyboard/
top cover.
2. Remove the Phillips PM2.5×4.3 screw (2) that secures the display right hinge to the keyboard/top cover.
3. Swing the display right hinge (3) up and back until the power connector is accessible.
4. Disconnect the power connector cable (1) from the system board.
40 Chapter 5 Removal and replacement procedures
