Display assembly
NOTE: The display assembly is spared at the subcomponent level only. For more display assembly spare
part information, see the individual removal subsections.
Before removing the display assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 28).
5. Remove the battery (see Battery on page 30).
Remove the display assembly:

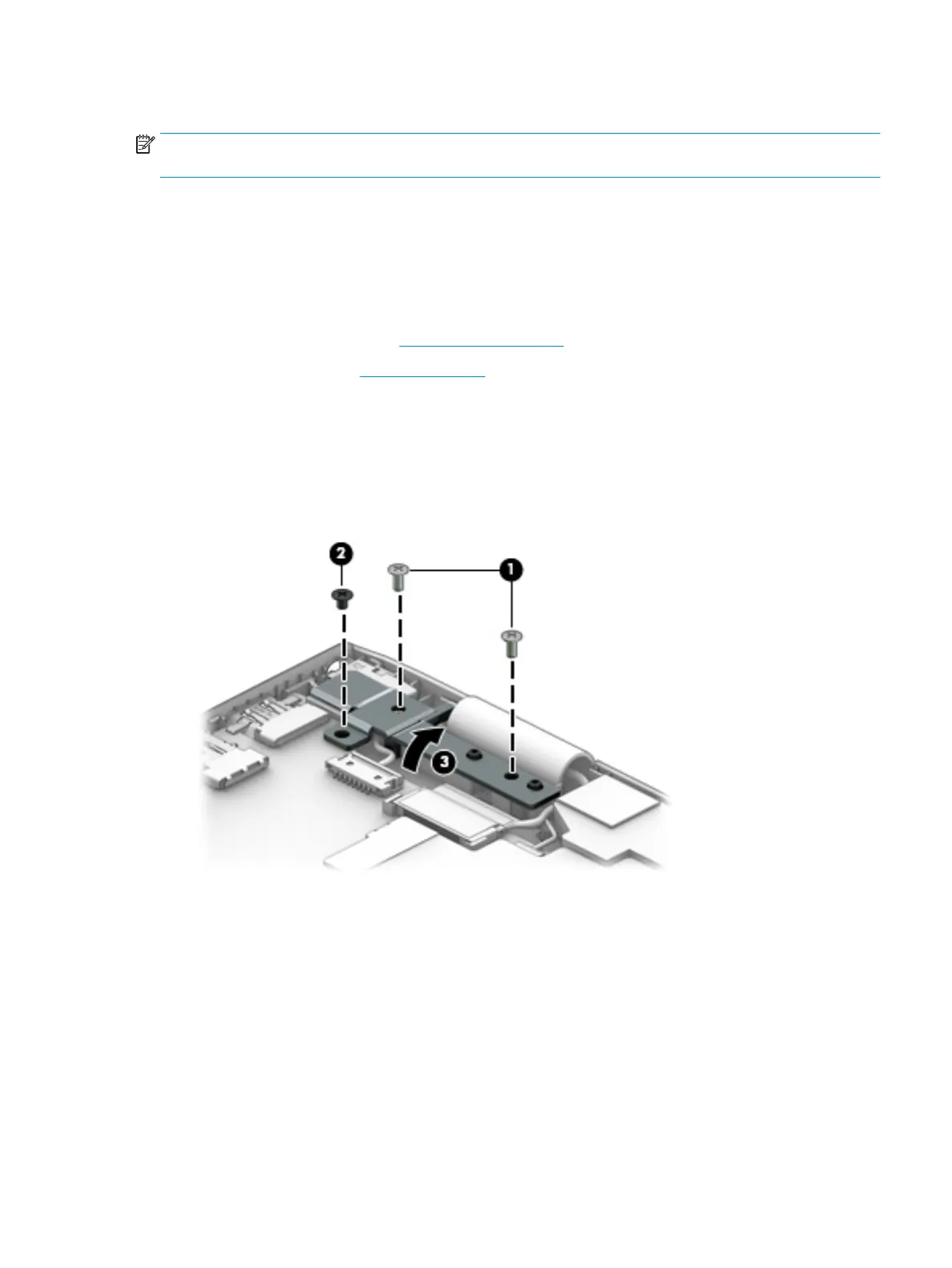

1. Remove the two Phillips PM2.5×6.3 screws (1) that secure the display right hinge to the keyboard/
top cover.
2. Remove the Phillips PM2.5×4.3 screw (2) that secures the display right hinge to the keyboard/top cover.
3. Swing the display right hinge up and back as far as it will go (3).
4. Remove the four Phillips PM2.5×6.3 screws (1) that secure the display left hinge to the keyboard/
top cover.
Component replacement procedures 57
