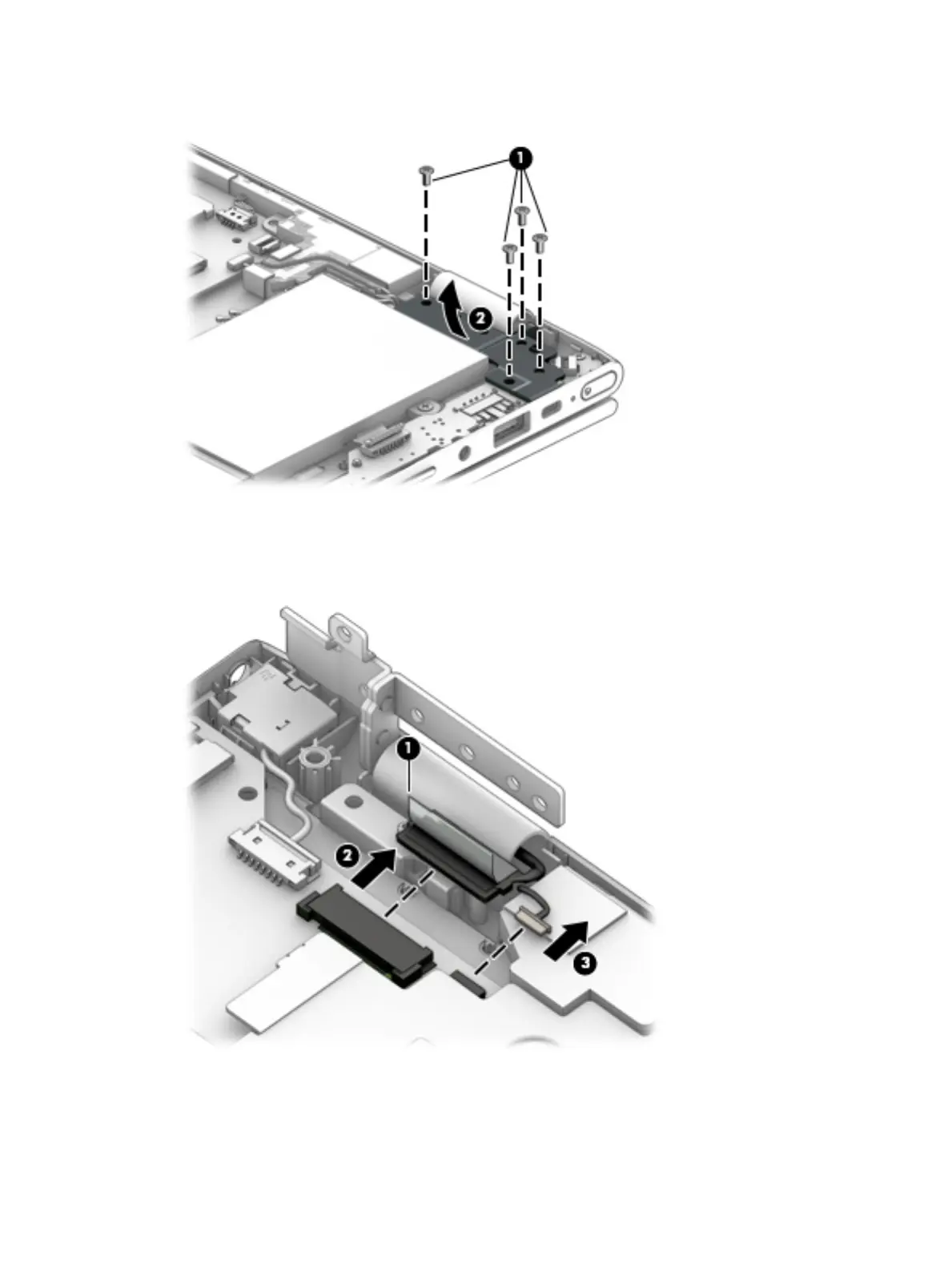

5. Swing the display left hinge up and back as far as it will go (2).
6. Release the adhesive support strip (1) that secures the display panel cable to the system board.
7. Disconnect the display panel cable (2) from the system board.
8. Disconnect the TouchScreen board cable (3) from the system board.
9. Release the ZIF connector (1) to which the G-sensor module cable is attached, and then disconnect
the G-sensor module cable from the system board.
10. Disconnect the wireless antenna cables (2) from the terminals on the WLAN module.
58 Chapter 5 Removal and replacement procedures
