2. Locate the correct flash memory module socket on the system board.
a. The PATA socket (1) is populated by default.
b. The SATA socket (2) can be populated with an optional SATA flash memory module.

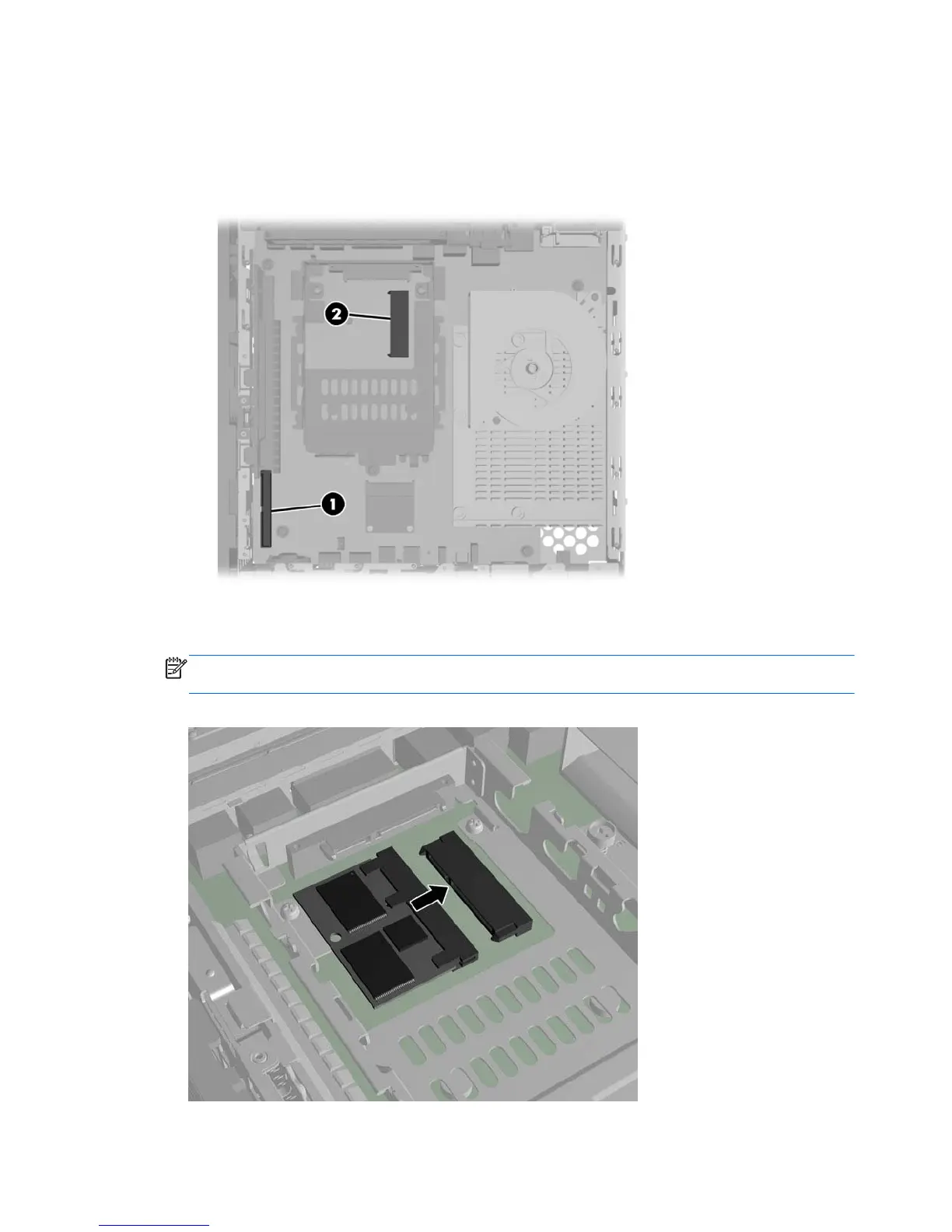

Figure 2-12 Identifying the Flash Memory Module sockets
3. Align the connector on the flash memory module with the socket on the system board and press
the flash memory module into the socket.
NOTE: A flash memory module can be installed in only one way. Line up the hole in the flash
memory module with the retention post on the system board.
Figure 2-13 Inserting the flash memory module
20 Chapter 2 Hardware changes
